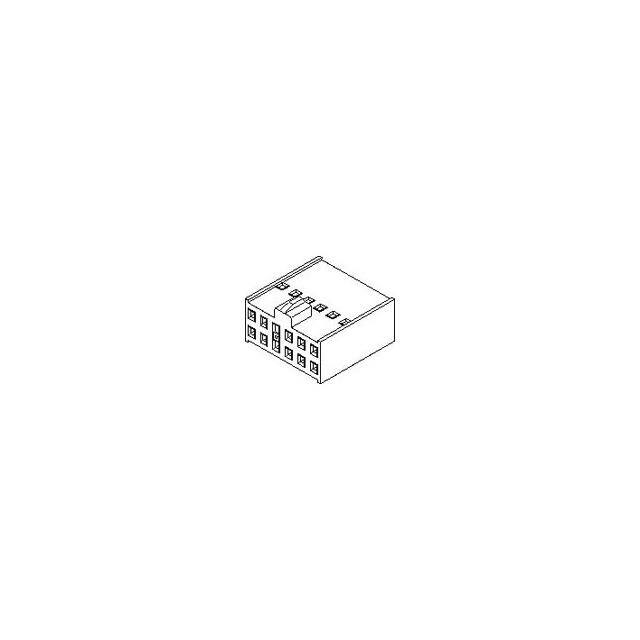

90142-0010

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Max Current Rating :

3 A

Contact Resistance :

20 mΩ

Termination :

Crimp

Schedule B :

8536695050, 8536695050/8536695050, 8536695050/8536695050/8536695050, 8536695050/8536695050/8536695050/8536695050

Series :

C-GRID III

Pitch :

2.5400 mm

Application :

Power

Lead Pitch :

2.54 mm

Current Rating :

3 A

RoHS-compliant :

yes

Voltage Rating Max :

350VDC/350VAC

Manufacturer part # :

901420010

Housing Material :

POLYPHENYLENE OXIDE

Orientation :

Straight

Insulation Resistance :

5 GΩ

Content :

1pc(s)

Package / Case :

Housing

Mount :

CABLE

Voltage Rating (AC) :

350 V

Housing Color :

Black

REACH SVHC :

Unknown

Base/Housing Material :

PPO (Polyphenylene Oxide)

Body Orientation :

Straight

RoHS :

Compliant

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Gender :

Receptacle

Depth :

15.24 mm

No. of rows :

2

Radiation Hardening :

No

Current Rating (Max) :

3/Contact(A)

Number of Contacts :

10(POS)

Number of Contact Rows :

2

CS :

2.54mm

Max Voltage Rating (DC) :

350.35 kV

Halogen Free :

Low Halogen

Lifecycle Status :

Production (Last Updated: 2 years ago)

Connector Type :

Power, Rectangular

Product Height (mm) :

15.24(mm)

Type :

Molex MOL Power and Signal Sol.

Packaging type :

Bag

Panel Mount :

No

Glow Wire Compliant :

Non-Compliant

RoHS Status :

RoHS Compliant

Max Operating Temperature :

105 °C

Country of Origin :

SG

Product Length (mm) :

12.7(mm)

Voltage Rating :

350 V

Product Depth (mm) :

7.72(mm)

For Use With :

90119 Crimp Terminal

Lead Free :

Lead Free

Operating Temperature :

-55 to 105 °C

Mounting :

Cable Mount

Flammability Rating :

UL94 V-0

Length :

12.7 mm

Number of Pins :

10

Max. temperature :

+105°C

Product Length :

12.7 mm

Color :

Black

Min Operating Temperature :

-55 °C

Height :

7.72 mm

Contact Gender :

FEMALE

Mounting Type :

Cable Mount

Packaging :

Bag-packed

Min. temperature :

-55°C

Pitch (mm) :

2.54(mm)

Number of Rows :

2

Operating Temp Range :

-55C to 105C

Body Material :

Polyphenylene

Total number of pins :

10

Number of Positions :

10

Width :

7.72 mm

Features :

+ locking mechanism
