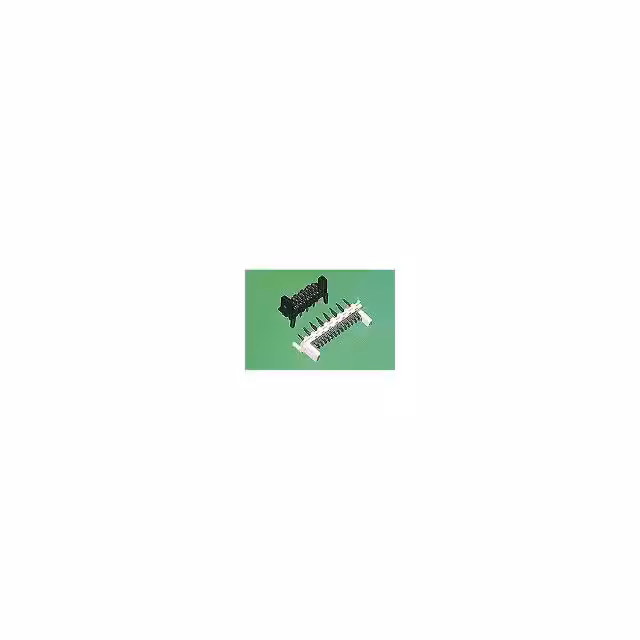

90325-3010

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Reach Compliance Code :

Compliant

Additional Feature :

STAGGERED CONFIGURATION

Number of Contacts :

10

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Lead Free :

Lead Free

Reliability :

COMMERCIAL

Product Category :

Headers and Wire Housings

Pitch :

1.27 mm

Mating Contact Pitch :

0.05 inch

Flammability :

94V-0

Housing Material :

Polyester

Flammability Rating :

UL 94 V-0

Rated Current (Signal) :

1.2 A

Number of Circuits :

10

Termination :

Through Hole

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Country of Origin :

MY

Packaging :

Bulk

Dielectric Withstanding Voltage :

750VAC V

Mounting Option 1 :

LOCKING

Contact Material :

Brass

Number of Rows :

1

Tradename :

PICOFLEX

Polarization Key :

POLARIZED HOUSING

Mounting Type :

Through Hole

Current Rating :

1.2 A

Mixed Contacts :

No

Body/Shell Style :

Receptacle

Series :

PICOFLEX

Body Depth :

0.252 inch

Voltage Rating :

250 V

Housing Color :

Black

JESD-609 Code :

e4

Mounting Angle :

Straight

Insulation Resistance :

1000000000 Ω

Brand :

Molex

Min Operating Temperature :

-40 °C

PCB Contact Row Spacing :

2.54 mm

Subcategory :

Headers and Wire Housings

Termination Style :

Solder Pin

DIN Conformance :

No

IEC Conformance :

No

UL Flammability Code :

94V-0

Maximum Operating Temperature :

105.0°C

Insulator Color :

Black

Contact Pattern :

RECTANGULAR

Application :

Signal

Product Type :

Headers and Wire Housings

Product :

Headers

Connector Type :

BOARD CONNECTOR

Filter Feature :

No

PCB Contact Pattern :

STAGGERED

Reference Standard :

UL, CSA

Gender :

Male

Contact Resistance :

15 mΩ

Contact Style :

SQ PIN-SKT

Number Of PCB Rows :

2

Mount :

Through Hole

Termination Type :

Solder

Package :

Bag

Number of Pins :

10

Type :

Ribbon Cable

Option :

GENERAL PURPOSE

Pbfree Code :

yes

Orientation :

Vertical

ECCN Code :

EAR99

Contact Type :

-

Body Breadth :

0.235 inch

Body Orientation :

Straight

Contact Plating :

Gold

Glow Wire Compliant :

Non-Compliant

Lifecycle Status :

Production (Last Updated: 2 years ago)

Accessory Type :

-

MIL Conformance :

No

Product Status :

Active

Number of Positions :

10

REACH SVHC :

Unknown

Plating Thickness :

20u inch

Max Operating Temperature :

105 °C

Total Number of Contacts :

10

Durability :

30 Cycles

RoHS :

Compliant

Board Mounting Option :

PEG

Mounting Style :

Through Hole

Minimum Operating Temperature :

-40.0°C

Manufacturer :

Molex

Contact Gender :

Pin (Male)

Contact Finish Termination :

GOLD (30) OVER NICKEL

Schedule B :

8536694040, 8536694040/8536694040, 8536694040/8536694040/8536694040, 8536694040/8536694040/8536694040/8536694040

HTS Code :

8536.69.40.40

Terminal Pitch :

1.27 mm

Termination Method :

IDC

Terminal Length :

0.129 inch
