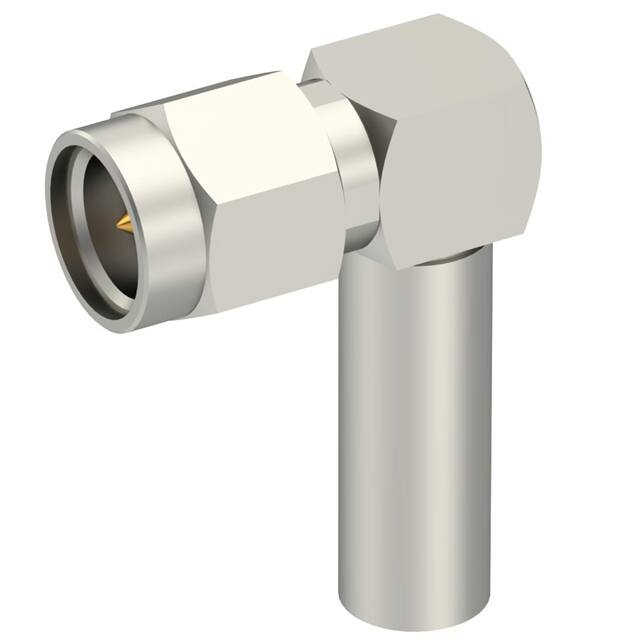

9043-7533-003
Or copy the link below:
- Mfr.Part #
- 9043-7533-003
- Manufacturer
- Radiall USA, Inc.
- Package / Case
- Datasheet
- Download
- Description
- SMA / RIGHT ANGLE PLUG MALE SOLD
- Stock
- 2,897
- In Stock ：
- 2,897
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Radiall USA, Inc.
- Product Category :
- Coaxial Connector (RF) Assemblies
- Filter Feature :
- No
- Polarity :
- Standard
- Fastening Type :
- Threaded
- Mounting Style :
- Panel Mount, Threaded
- Shield Termination :
- Solder
- Product Category :
- RF Connectors / Coaxial Connectors
- Contact Termination :
- Crimp or Solder
- Body Material :
- Brass
- Body Style :
- Screw On
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Housing Color :
- Silver
- Insertion Loss :
- -
- RoHS :
- Details
- Orientation :
- RIGHT ANGLE
- Coupling Type :
- Threaded
- DIN Conformance :
- No
- Termination Style :
- Solder
- Body Finish :
- Nickel
- Gender :
- Plug (Pin)
- Reach Compliance Code :
- Compliant
- MIL Conformance :
- No
- Package :
- Bulk
- Connector Type :
- Plug, Male Pin
- Contact Material :
- BERYLLIUM COPPER
- Contact Plating :
- Gold
- Connector Style :
- SMA
- Packaging :
- Bulk
- Option :
- GENERAL PURPOSE
- Characteristic Impedance :
- 50 Ω
- Center Contact Plating :
- Gold
- Additional Feature :
- APPLICABLE CABLE: RG 316
- Mounting Type :
- Free Hanging (In-Line), Right Angle
- Operating Temperature :
- -65°C ~ 165°C
- Product :
- Connectors
- IEC Conformance :
- No
- Product Status :
- Active
- Cable Group :
- RG-174, 188, 316
- Center Contact Material :
- BERYLLIUM COPPER
- Features :
- -
- Number of Ports :
- 1
- Contact Finish Termination :
- Gold (Au) - with Nickel (Ni) barrier
- Includes :
- -
- Contact Gender :
- Male
- Subcategory :
- RF Interconnects
- Impedance :
- 50Ohm
- Cable Type :
- RG-174, 179, 316
- Factory Lead Time :
- 19 Weeks
- Brand :
- Radiall
- Manufacturer :
- Radiall
- Ingress Protection :
- -
- JESD-609 Code :
- e4
- Product Type :
- RF Connectors / Coaxial Connectors
- Mounting Feature :
- -
- Series :
- SMA
- Panel Mount :
- No
- Mating Cycles :
- 500
- Body/Shell Style :
- PLUG
- Frequency - Max :
- 12.4 GHz
- Base Product Number :
- 9043-7533
- Termination Type :
- Solder/Crimp
- RF Series :
- SMA
- Datasheets
- 9043-7533-003
