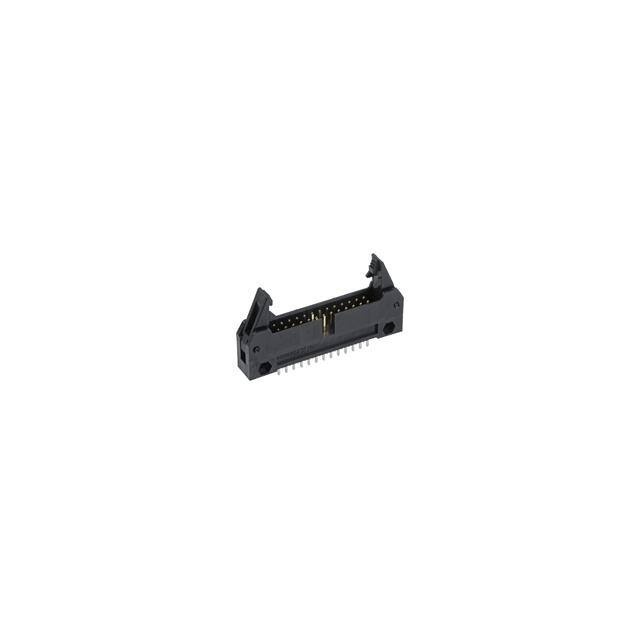

90663-1301

Manufacturer :

Molex

Product Category :

Headers, Male Pins

RoHS :

Compliant

Operating Temp Range :

-25C to 85C

Glow Wire Compliant :

Non-Compliant

Mating Contact Row Spacing :

0.1 inch

Body Depth :

0.642 inch

Terminal Length :

0.138 inch

Body/Shell Style :

Receptacle

Plating :

Tin

Type :

Ejector Header

Termination Type :

Solder

Pitch :

2.54 mm

MIL Conformance :

No

Contact Gender :

Male

Connector Type :

BOARD CONNECTOR

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mounting Style :

Through Hole

Contact Finish Termination :

Gold (Au) - with Nickel (Ni) barrier

ECCN Code :

EAR99

Contact Resistance :

20 mΩ

Reach Compliance Code :

Compliant

Total Number of Contacts :

30

Product Status :

Active

Product Height (mm) :

26.6(mm)

Rated Current (Signal) :

2.5 A

Withdrawl Force-Min :

.5004 N

Component Type :

PCB Header

Board Mounting Option :

HOLE .112-.124

Plating Thickness :

4u inch

Contact Material :

Brass

Current Rating :

1 A

Contact Pattern :

RECTANGULAR

Package :

Box

UL Flammability Code :

94V-0

Number of Contacts :

30(POS)

Body Orientation :

Straight

Filter Feature :

No

Subcategory :

Headers and Edge Type Connectors

Number of Circuits :

30

PCB Contact Pattern :

RECTANGULAR

Additional Feature :

QF 50, STANDARDS: MIL-C-83503; DIN 41651, POLARIZED

Series :

*

Housing Color :

Black

Product Length (mm) :

57.56(mm)

Insulation Resistance :

1000000000 Ω

Option :

GENERAL PURPOSE

Manufacturer :

Molex

Country of Origin :

SK

Pitch (mm) :

2.54(mm)

Body Breadth :

0.335 inch

Number Of PCB Rows :

2

DIN Conformance :

No

Reliability :

COMMERCIAL

Mounting Option 1 :

LATCH and EJECT

Terminal Pitch :

2.54 mm

Number of Positions :

30

Termination :

Through Hole

Pbfree Code :

yes

Reference Standard :

UL

Polarization Key :

MIL TYP and CENTER

Dielectric Withstanding Voltage :

500VAC V

Voltage Rating (AC) :

250 V

Insertion Force-Max :

3.4194 N

Product Depth (mm) :

8.5(mm)

Durability :

300 Cycles

Contact Plating :

Gold Over Nickel

IEC Conformance :

No

Number of Contact Rows :

2

Number of Rows :

2

Voltage Rating Max :

250VDC/250VAC

Housing Material :

Polyester

Gender :

HDR

PCB Contact Row Spacing :

2.54 mm

Mounting Type :

BOARD

Termination Method :

Solder

HTS Code :

8536.69.40.40

Wire/Cable Type :

Ribbon Cable

Packaging :

Tray

Mating Contact Pitch :

0.1 inch

Mixed Contacts :

No

Current Rating (Max) :

2.5/Contact(A)

Contact Style :

SQ PIN-SKT

JESD-609 Code :

e4
