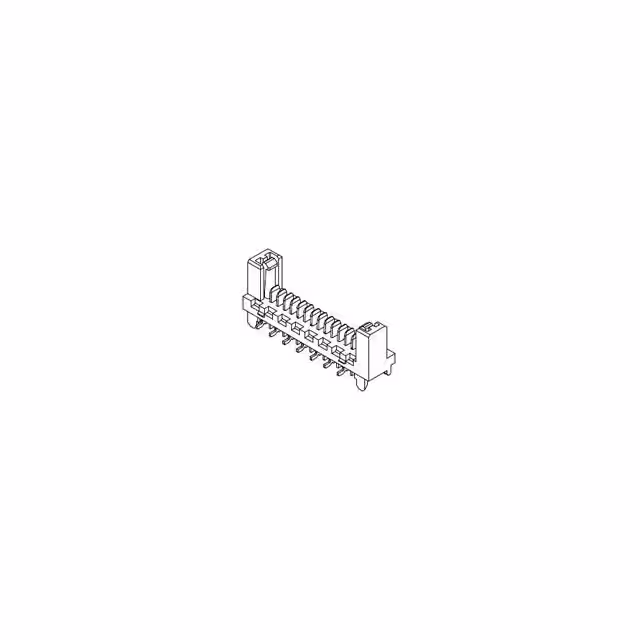

90816-0024

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Gender :

Header

ECCN Code :

EAR99

Tradename :

PICOFLEX

Mounting Type :

BOARD

Subcategory :

Headers and Wire Housings

Pitch :

1.2700 mm

DIN Conformance :

No

Contact Plating :

Tin

Maximum Operating Temperature :

+ 105 C

Terminal Pitch :

1.27 mm

Operating Temperature :

-40 to 105 °C

Package :

Box

Product Status :

Active

Orientation :

Vertical

Number of Positions :

24 Position

Mounting Style :

SMD/SMT

Body Orientation :

Straight

Body Depth :

0.333 inch

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Total Number of Contacts :

24

Application :

Signal

Product Length :

36.26 mm

IEC Conformance :

No

Mixed Contacts :

No

Product Category :

Headers and Wire Housings

HTS Code :

8536.69.40.40

Reach Compliance Code :

Compliant

Product Type :

Headers and Wire Housings

Body Breadth :

0.195 inch

MIL Conformance :

No

Contact Finish Termination :

Tin (Sn) - with Nickel (Ni) barrier

Additional Feature :

POLARIZED

Product :

Headers

Manufacturer :

Molex

Contact Pattern :

RECTANGULAR

Filter Feature :

No

Housing Material :

Nylon

Option :

GENERAL PURPOSE

Number Of PCB Rows :

2

Voltage Rating :

250 V

Brand :

Molex

JESD-609 Code :

e3

Mounting Option 2 :

LOCKING

Contact Resistance :

15 mΩ

Mounting :

Surface Mount

Housing Color :

Black

Type :

Ribbon Cable

Termination Type :

Surface Mount

Contact Material :

Brass

Board Mounting Option :

PEG

Connector Type :

BOARD CONNECTOR

Insertion Force-Max :

1.6958 N

Accessory Type :

-

Contact Gender :

Pin (Male)

Termination Style :

Solder

Minimum Operating Temperature :

- 40 C

Number of Rows :

1 Row

Insulator Color :

Black

Plating Thickness :

23u inch

Reliability :

COMMERCIAL

Rated Current (Signal) :

1.2 A

Insulation Resistance :

1000000000 Ω

Mounting Angle :

Straight

Termination Method :

Solder

Contact Type :

-

Base/Housing Material :

Nylon

Mounting Option 1 :

Latch

Series :

90816

Body/Shell Style :

Receptacle

Current Rating :

1.2 A

PCB Contact Pattern :

STAGGERED

Reference Standard :

UL

Withdrawl Force-Min :

.2502 N

Mating Contact Pitch :

0.05 inch

Packaging :

Tube

RoHS :

Details
