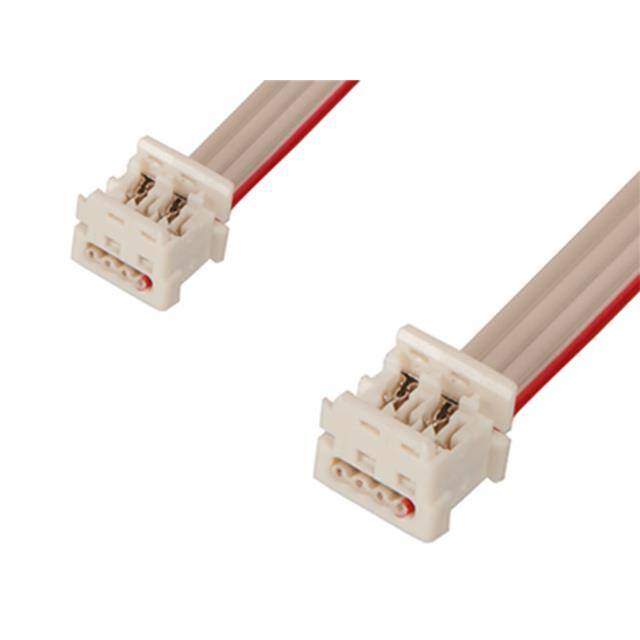

92315-0416

Manufacturer :

Molex

Product Category :

Unclassified

Connector Type B :

PICOFLEX

Operating Temp Range :

-40C to 105C

Brand :

Molex

Contact Material :

Phosphor Bronze

Product Weight :

1.662g

Maximum Voltage Rating :

250V

Shielding :

Unshielded

Conductor Material :

Tinned Copper

Jacket Material :

Polyvinyl Chloride (PVC)

Product Type :

Ribbon Cables / IDC Cables

Subcategory :

Cable Assemblies

Size (AWG) :

28

Contact Plating :

Tin

Usage :

-

Pitch - Cable :

0.025 (0.64mm)

Type :

Flat Flex Cable

PPAP :

No

Product :

I/O Cable Assemblies

Features :

-

Current Rating (Max) :

1.2/Contact(A)

Product Category :

Ribbon Cables / IDC Cables

Product Status :

Active

Automotive :

No

Connector Type :

4POS RA Picoflex to 4POS RA Picoflex

Packaging :

Bag

Connector Type A :

PICOFLEX

EU RoHS :

Compliant

Cable Pitch (mm) :

1.27

Standards Met :

RoHS Compliant

Package :

Box

Series :

PICOFLEX

Insulation Color :

Gray

Gender :

F-F

Base Product Number :

92315

Number of Contacts :

4 to 4

Cable Termination :

IDC

Cable Length (m) :

0.16

Manufacturer :

Molex

Maximum Current Rating (A) :

1.2/Contact

Color :

Gray, Ribbon

Contact Finish Thickness :

80.0µin (2.03µm)

HTS :

8544.42.90.90

Minimum Operating Temperature (°C) :

-40

Wire Size :

28

Maximum Operating Temperature (°C) :

105

Pitch :

1.27mm

Cable Length :

0.16 m

Termination Method :

IDT-IDT

Voltage Rating :

250 V

Connector Pitch :

1.27mm

Wire Gauge :

28(AWG)

Contact Finish :

Tin

Voltage Rating Max :

250V

Length :

160mm

Number of Rows :

2

Cable Type :

Flat Ribbon

Tradename :

Picoflex?

Current Rating :

1.2 A

Pitch - Connector :

0.050 (1.27mm)

ECCN (US) :

EAR99

Product Depth (mm) :

7.59

Jacket Color :

Natural

RoHS :

Details

Number of Positions :

4
