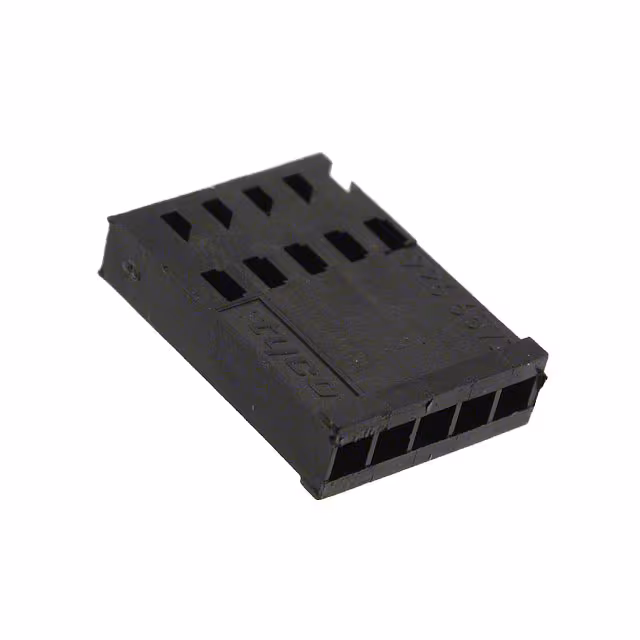

926657-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Mounting Style :

Cable Mount / Free Hanging

Application :

Wire-to-Board

Packaging :

Box

Number of Rows :

1

Dim :

(L x W x H) 4.5 x 17.8 x 13.16 mm

Number of Positions :

5 Position

Pins per row :

5

Pin shape :

Square

Brand Name :

AMP

Industrial packaging :

No

Contact Type :

Socket (Female)

Product Length (mm) :

13.16(mm)

Contact Material :

NOT SPECIFIED

Product Type :

Headers and Wire Housings

Brand :

TE Connectivity

Product Category :

Headers and Wire Housings

Pbfree Code :

yes

Pitch (mm) :

2.54(mm)

Connection :

Crimp

Filter Feature :

No

Additional Feature :

AMPMODU, COMPATIBLE CONTACTS: 87190-1; 87191-1; 87190-2; 867052-2; 926963-2

Content :

1pc(s)

CS :

2.54mm

Housing Material :

PBT

RoHS :

Details

Tradename :

AMPMODU

Product :

Wire Housings

Product Height (mm) :

17.8(mm)

Number of Contacts :

5(POS)

IEC Conformance :

No

UL Flammability Code :

94V-0

Length :

4.5mm

Contact Gender :

FEMALE

Termination Style :

Crimp

Case material :

Polyester

Mounting Type :

CABLE

Housing Gender :

Receptacle

Housing Color :

Black

Pitch :

2.54mm

Subcategory :

Headers and Wire Housings

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Factory Lead Time :

13 Weeks, 1 Day

No. of rows :

1

Reach Compliance Code :

Compliant

Connector contact surface :

Tin plated

Number of Contact Rows :

1

Minimum Operating Temperature :

- 65 C

Manufacturer part # :

926657-5

For Use With :

AMPMODU Series Socket Contatcs

Width :

17.8mm

DIN Conformance :

No

Body Orientation :

Straight

Total Number of Contacts :

5

Type :

AMPMODU

Connector Type :

BOARD CONNECTOR

Nominal current :

3A

Maximum Operating Temperature :

+ 105 C

Total number of pins :

5

Gender :

RCP

Product Depth (mm) :

4.5(mm)

Mixed Contacts :

No

Series :

AMPMODU

Option :

GENERAL PURPOSE

Height :

13.16mm

MIL Conformance :

No

Nominal current - rounded value :

3A
