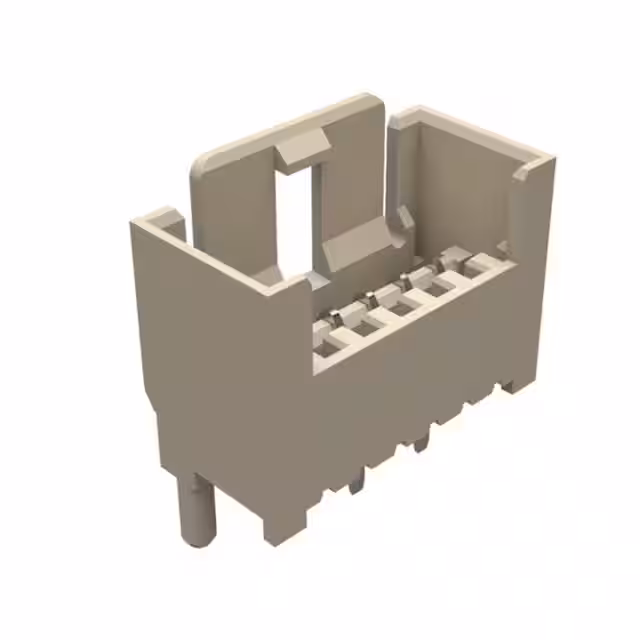

93070-0002

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Series :

93070

Insulation Resistance :

10000000 Ω

Filter Feature :

No

Tradename :

RAST 2.5

Type :

SHROUDED

Body Breadth :

0.362 inch

Contact Resistance :

10 MΩ

UL Flammability Code :

94V-0

HTS Code :

8536.69.40.30

Product Status :

Active

Termination Style :

Solder Pin

Accessory Type :

-

Number of Rows :

1 Row

Reach Compliance Code :

Compliant

Withdrawl Force-Min :

.5004 N

Flammability Rating :

UL 94 V-0

Dielectric Withstanding Voltage :

1000VAC V

Terminal Length :

0.13 inch

Pitch :

2.5 mm

Minimum Operating Temperature :

- 20 C

Reliability :

COMMERCIAL

Contact Material :

Brass

Connector Type :

RECTANGULAR POWER CONNECTOR

ECCN Code :

EAR99

Package :

Box

Contact Plating :

Tin

Product Type :

Headers and Wire Housings

Contact Type :

-

RoHS :

Details

Insertion Force-Max :

3.9754 N

Application :

Power

Current Rating :

6 A

MIL Conformance :

No

Empty Shell :

No

Manufacturer :

Molex

Option :

GENERAL PURPOSE

Housing Color :

Natural

Durability :

10 Cycles

DIN Conformance :

No

Voltage Rating :

32 V

Mounting Style :

Through Hole

Number of Positions :

3 Position

Termination Post Length :

3.3 mm

Contact Arrangement :

S0P3

Additional Feature :

LATCHED

Board Mounting Option :

PEG

Orientation :

Vertical

Packaging :

Bulk

Reference Standard :

UL

Body Depth :

0.602 inch

Mixed Contacts :

No

Insulator Color :

Natural

Brand :

Molex

Product Category :

Headers and Wire Housings

Total Number of Contacts :

3

Product :

Headers

Mounting Angle :

Straight

Contact Gender :

Pin (Male)

Housing Material :

Nylon

Flammability :

94V-0

Subcategory :

Headers and Wire Housings

Maximum Operating Temperature :

+ 120 C

Mounting Option 1 :

LOCKING

Shell Material :

GLASS FILLED POLYAMIDE66

Termination Type :

Solder

IEC Conformance :

No

Pbfree Code :

yes

Mounting Type :

BOARD
