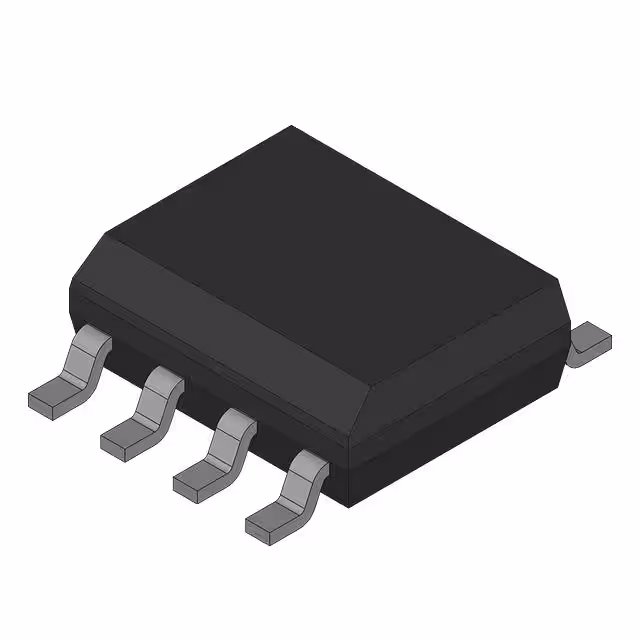

93C46-E/SN

Manufacturer :

Microchip Technology

Product Category :

Memory

Package Shape :

RECTANGULAR

Surface Mount :

yes

Manufacturer :

Rochester Electronics LLC

Memory Width :

16

Memory Organization :

64 x 16

Pin Count :

8

Serial Bus Type :

Microwire

Terminal Position :

Dual

Supplier Device Package :

8-SOIC

Supply Voltage-Min (Vsup) :

4.5 V

Qualification Status :

COMMERCIAL

Technology :

EEPROM

Number of Functions :

1

Memory Density :

1024 bit

Number of Words :

64 words

JESD-30 Code :

R-PDSO-G8

Mounting Type :

Surface Mount

Parallel/Serial :

Serial

Reach Compliance Code :

Unknown

Seated Height-Max :

1.75 mm

Supply Voltage-Max (Vsup) :

5.5 V

Terminal Finish :

TIN LEAD

Organization :

64X16

Memory Type :

Non-Volatile

Pbfree Code :

No

Package / Case :

8-SOIC (0.154, 3.90mm Width)

Number of Terminals :

8

Base Product Number :

93C46

Write Cycle Time - Word, Page :

2ms

Memory Size :

1Kbit

Terminal Form :

Gull wing

Memory Format :

EEPROM

Memory IC Type :

EEPROM

Length :

4.9 mm

Memory Interface :

Microwire

Operating Temperature :

-40°C ~ 125°C (TA)

JESD-609 Code :

e0

Operating Mode :

SYNCHRONOUS

RoHS :

Non-Compliant

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Temperature Grade :

Automotive

Series :

-

Terminal Pitch :

1.27 mm

Voltage - Supply :

4.5V ~ 5.5V

Product Status :

Active

Width :

3.9 mm

Write Cycle Time-Max (tWC) :

2 ms

Package :

Bulk

Clock Frequency :

1 MHz
