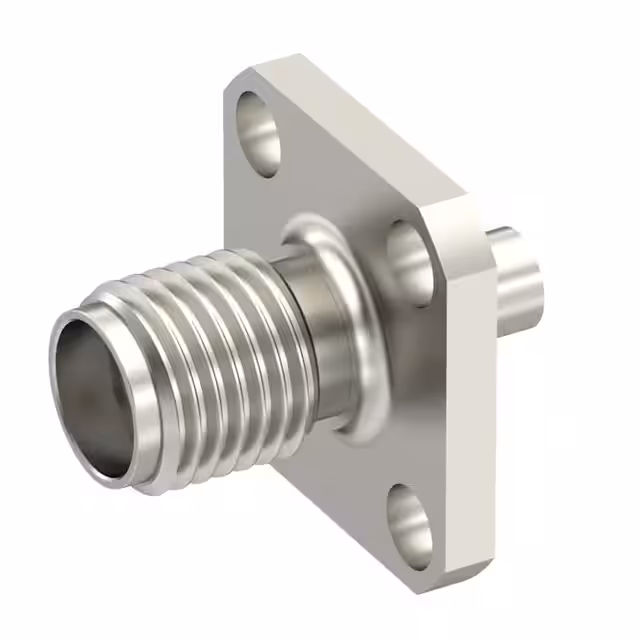

9431-7083-010

Manufacturer :

Radiall USA, Inc.

Product Category :

Coaxial Connector (RF) Assemblies

Mounting Feature :

Flange

Product Category :

RF Connectors / Coaxial Connectors

Frequency - Max :

18 GHz

Characteristic Impedance :

50 Ω

Subcategory :

RF Interconnects

Reach Compliance Code :

Unknown

Body Material :

Stainless Steel

Center Contact Plating :

Gold

Impedance :

50Ohm

Cable Group :

RG-405 (.086 Semi Rigid)

Number of Ports :

1

Series :

-

Manufacturer :

Radiall

Insertion Loss :

-

Filter Feature :

No

Ingress Protection :

-

Connector Type :

Jack, Female Socket

Contact Termination :

Solder

Coupling Type :

Threaded

Base Product Number :

9431-7083

Center Contact Material :

BERYLLIUM COPPER

Operating Temperature :

-65°C ~ 165°C

Housing Color :

Silver

Packaging :

Bulk

Body/Shell Style :

JACK

Operating Frequency-Max :

18 GHz

Termination Type :

Solder

Panel Mount :

yes

Product Status :

Active

Mating Cycles :

500

Includes :

-

Contact Finish Termination :

Nickel

Option :

GENERAL PURPOSE

Features :

-

Contact Gender :

FEMALE

Shield Termination :

Solder

Connector Style :

SMA

RF Series :

SMA

Fastening Type :

Threaded

Body Finish :

Nickel

Mounting Type :

Panel Mount

Additional Feature :

INSERTION LOSS MAX AT 6 GHZ

Package :

Bulk

VSWR :

1.4

DIN Conformance :

No

Mounting Style :

Straight

Product Type :

RF Connectors / Coaxial Connectors

MIL Conformance :

No

IEC Conformance :

No

Dielectric Material :

Polytetrafluoroethylene (PTFE)

Brand :

Radiall
