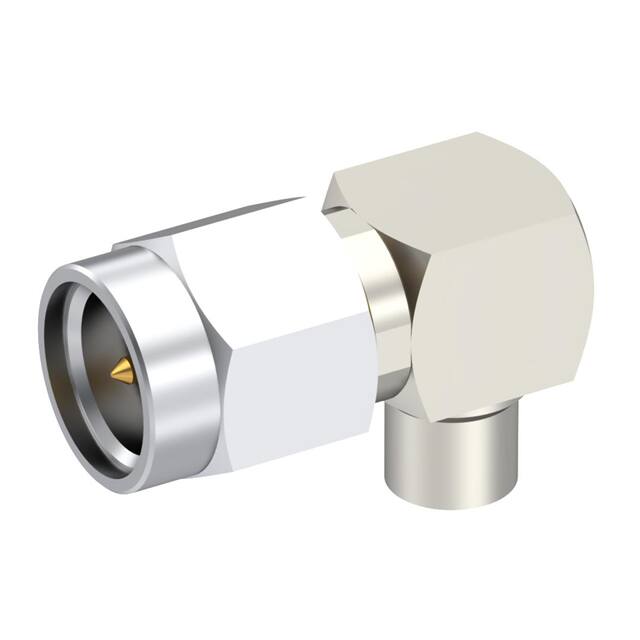

9443-7563-010
Or copy the link below:
- Mfr.Part #
- 9443-7563-010
- Manufacturer
- Radiall USA, Inc.
- Package / Case
- Datasheet
- Download
- Description
- SMA / RIGHT ANGLE PLUG MALE SOLD
- Stock
- 19,426
- In Stock ：
- 19,426
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Radiall USA, Inc.
- Product Category :
- Coaxial Connector (RF) Assemblies
- Coupling Type :
- Threaded
- Features :
- -
- Number of Ports :
- 1
- Gender :
- Plug (Pin)
- Mounting Style :
- RIGHT ANGLE
- Shield Termination :
- Solder
- Characteristic Impedance :
- 50 Ω
- RF Series :
- SMA
- Mounting Feature :
- -
- Option :
- GENERAL PURPOSE
- Manufacturer :
- Radiall
- Fastening Type :
- Threaded
- Contact Termination :
- Solder
- Termination Style :
- Solder
- Housing Color :
- Silver
- Body Finish :
- Nickel
- Center Contact Material :
- BERYLLIUM COPPER
- Connector Type :
- Plug, Male Pin
- Operating Temperature :
- -65°C ~ 165°C
- Orientation :
- RIGHT ANGLE
- Includes :
- -
- Additional Feature :
- INSERTION LOSS MAX AT 6 GHZ
- Reach Compliance Code :
- Unknown
- Filter Feature :
- No
- Frequency - Max :
- 18 GHz
- IEC Conformance :
- No
- Cable Group :
- RG-405 (.085 Semi Rigid)
- Impedance :
- 50Ohm
- Factory Lead Time :
- 2 Weeks, 1 Day
- DIN Conformance :
- No
- Voltage Rating :
- 350 V
- Contact Gender :
- Male
- Operating Frequency-Max :
- 18 GHz
- Insertion Loss :
- -
- Center Contact Plating :
- Gold
- Contact Finish Termination :
- Nickel
- Mounting Type :
- Free Hanging (In-Line), Right Angle
- Cable Type :
- RG-405
- Ingress Protection :
- -
- Series :
- -
- Product :
- Connectors
- Termination Type :
- Solder
- Product Status :
- Active
- Body Material :
- Stainless Steel
- Panel Mount :
- No
- Mating Cycles :
- 500
- Package :
- Bulk
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- MIL Conformance :
- No
- Connector Style :
- SMA
- Contact Plating :
- Gold
- Base Product Number :
- 9443-7563
- Body/Shell Style :
- PLUG
- Datasheets
- 9443-7563-010
