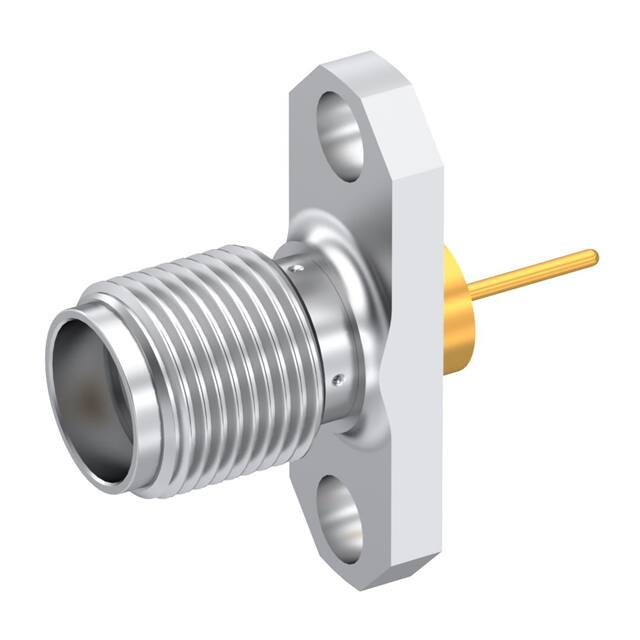

9508-9113-003
Or copy the link below:
- Mfr.Part #
- 9508-9113-003
- Manufacturer
- Radiall USA, Inc.
- Package / Case
- Datasheet
- Download
- Description
- SMA F STR NWF
- Stock
- 30,680
- In Stock ：
- 30,680
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Radiall USA, Inc.
- Product Category :
- Coaxial Connector (RF) Assemblies
- Feature :
- Hermetically Sealed
- Packaging :
- Bulk
- JESD-609 Code :
- e4
- IEC Conformance :
- No
- Mating Cycles :
- 500
- Orientation :
- Straight
- Mounting Feature :
- Flange
- Center Contact Plating :
- Gold
- Impedance :
- 50Ohm
- Contact Termination :
- Solder
- Center Contact Material :
- BERYLLIUM COPPER
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Ports :
- 1
- Body Material :
- Stainless Steel
- Mounting Type :
- Panel Mount
- MIL Conformance :
- No
- Operating Frequency-Max :
- 26GHz
- Operating Temperature :
- -65°C~165°C
- Insulation Material :
- POLYTETRAFLUORO ETHYLENE
- Panel Mount :
- yes
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Connector Style :
- SMA
- Connector Type :
- Jack, Female Socket
- Additional Feature :
- INSERTION LOSS MAX AT 26 GHZ
- Filter Feature :
- No
- Contact Finish - Mating :
- NOT SPECIFIED
- DIN Conformance :
- No
- Factory Lead Time :
- 13 Weeks
- Insertion Loss :
- 0.25 dB
- Gender :
- Male
- RoHS Status :
- RoHS Compliant
- Frequency (Max) :
- 18GHz
- Fastening Type :
- Threaded
- Datasheets
- 9508-9113-003
Jack, Female Socket Threaded 50Ohm Bulk SMA Solder 1 Port Polytetrafluoroethylene (PTFE) -65°C~165°C
9508-9113-003 Overview
A Jack, Female Socket package is included with it.Panel Mount indicates that the device is mounted.An Bulk case is utilized for packaging the product.Furthermore, there are other features such as INSERTION LOSS MAX AT 26 GHZ, to name a few.With 1 ports, it is capable of managing a wide range of tasks.In many ways, Hermetically Sealed makes it more powerful.Operating temperature is set to -65°C~165°C.
9508-9113-003 Features
9508-9113-003 Applications
There are a lot of Radiall USA, Inc.
9508-9113-003 Coaxial Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
