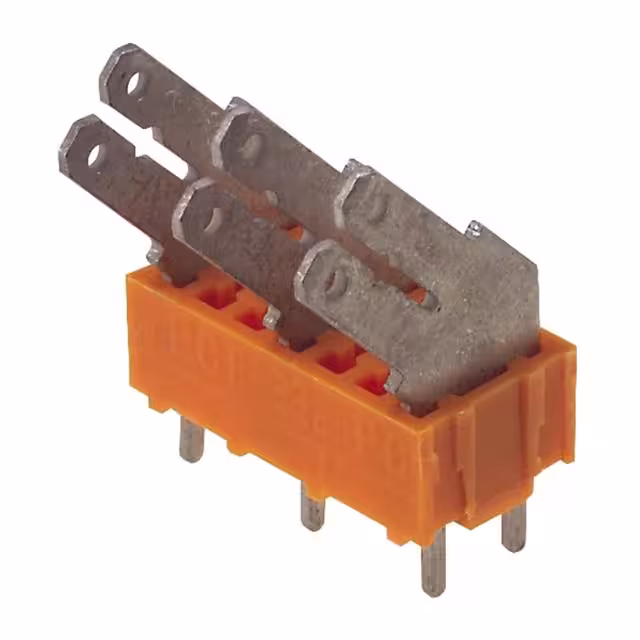

9512060000
Or copy the link below:
- Mfr.Part #
- 9512060000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK 11POS 45DEG 7.5MM PCB
- Stock
- 9,844
- In Stock ：
- 9,844
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Wire to Board
- Number of Rows :
- 1
- Number of Decks :
- 1
- Mating Orientation :
- 45° (135°) Angle with Board
- Number of Levels :
- 1
- Housing Material :
- Polyamide (PA), Nylon
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 12 Weeks
- Series :
- Omnimate PCF
- Additional Feature :
- STANDARD: UL 94V-2
- Approval Agency :
- CSA
- Fastening Method :
- Solder
- Number of Ways :
- 11
- Radiation Hardening :
- No
- Positions Per Level :
- 11
- HTS Code :
- 8536.69.40.40
- Terminal and Terminal Block Type :
- STRIP TERMINAL BLOCK
- RoHS Status :
- RoHS Compliant
- Voltage - Rated :
- 300V
- Contact Material :
- CuSn
- Packaging :
- Bulk
- Mount :
- Through Hole
- Insulation Material :
- Nylon
- Operating Temperature :
- -50°C~100°C
- Mounting Type :
- Through Hole
- Color :
- Orange
- ECCN Code :
- EAR99
- Contact Material - Plating :
- Copper Alloy - Tin Plated
- Published :
- 2008
- Contact Plating :
- Tin
- Wire Termination :
- Quick Connect, Disconnect
- Number of Poles :
- 11
- Pitch :
- 0.295 7.50mm
- Hole Diameter :
- 1.3 mm
- Current Rating :
- 15A
- Flammability Rating :
- UL94 V-2
- Safety Approval :
- CSA
- Termination :
- Quick Connect
- Datasheets
- 9512060000
0.295 7.50mm Orange Bulk Polyamide (PA), Nylon Through Hole 45° (135°) Angle with Board Quick Connect, Disconnect 1 Levels Omnimate PCF
9512060000 Overview
There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number Omnimate PCF belongs to the Omnimate PCF Series.Further, there are features such as STANDARD: UL 94V-2, to name only a few.There is a Through Hole mount on the part.This device operates at a temperature of -50°C~100°C.
9512060000 Features
Omnimate PCF series
9512060000 Applications
There are a lot of Weidmüller
9512060000 Terminal Blocks applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
