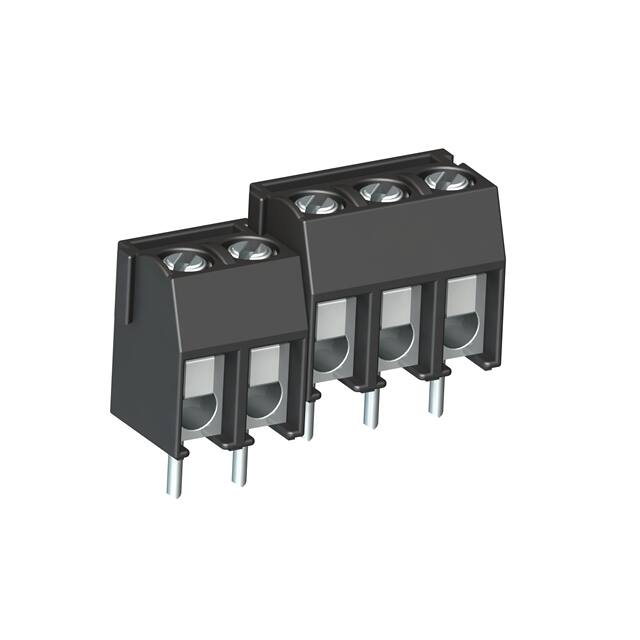

960-T-DS/03

Manufacturer :

WECO Electrical Connectors

Product Category :

Wire to Board

Approvals :

CSA;UR

Safety Approval :

CSA; SEV; UL

Body Orientation :

Straight

Package :

Box

Current Rating (Max) :

20(A)

Additional Feature :

STANDARD: UL 94V-0, POLYAMIDE

Product Depth (mm) :

9(mm)

Housing Material :

Polyamide

Number of Ways :

3

Screw Thread :

M3

Composition :

Polyamide

Wire Gauge (Max) :

26 AWG

Operating Voltage (Max) :

300V

Voltage Rating :

300 V

Clamp Material - Plating :

Phosphor Bronze - Tin Plated

Voltage :

300 V

Pitch :

0.200 (5.08mm)

Number of Poles :

3

Product Status :

Active

Type :

Terminal Block

Positions Per Level :

3

Housing Color :

Gray

HTS Code :

8536.69.40.40

Contact Material - Plating :

Brass - Tin Plated

Wire Termination :

Screw - Leaf Spring, Wire Guard

Pin Length :

4.2 MilliMeters

Operating Temperature :

-40°C ~ 100°C

Termination :

Screw

Lead Free :

Lead Free

Termination Method :

Solder

Rated Voltage :

300 V

Contact Plating :

Tin/Zinc

Current :

20 A

Body Material :

Polyamide

Connection Type :

Screw Clamp

Features :

Interlocking (Side)

Wire Cross Section :

2.5 mm2

Current Rating :

20 A

Product Length (mm) :

15.94(mm)

Number of Rows :

1

Series :

-

Wire Gauge (Min) :

12 AWG

Reach Compliance Code :

Compliant

Number of Levels :

1

Number of Contact Rows :

1

Mounting Style :

Through Hole

Connector Type :

Screw

Manufacturer :

WECO Electrical Connectors

Number of Decks :

1

Mounting Type :

PCB Mount

Rated Current :

20 A

Operating Temp Range :

-40C to 105C

Contact Pitch (mm) :

5.08(mm)

Product Height (mm) :

13.5(mm)

Color :

Gray

Rad Hardened :

No

Fastening Method :

Screw

Number of Contacts :

3(POS)

RoHS :

yes

Torque - Screw :

0.51 Nm (4.5 Lb-In)

Mating Orientation :

Horizontal with Board

Terminal and Terminal Block Type :

STRIP TERMINAL BLOCK

Contact Material :

Copper Alloy/Steel

Temperature Range :

-40 to 212 Degrees F

Wire Gauge :

12-26(AWG)

Stripping Length :

6.604 mm

Screw Material - Plating :

Steel - Zinc Plated

Mount :

Screw

ECCN Code :

EAR99
