A-DF 09 AA/Z
Or copy the link below:
- Mfr.Part #
- A-DF 09 AA/Z
- Manufacturer
- ASSMANN WSW Components
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 9POS R/A SLDR
- Stock
- 389
- In Stock ：
- 389
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ASSMANN WSW Components
- Product Category :
- D-Sub Connector Assemblies
- Mating Contact Row Spacing :
- 0.112 inch
- Reliability :
- COMMERCIAL
- Mounting Type :
- Through Hole
- Connector Type :
- Receptacle, Female Sockets
- Material Flammability Rating :
- UL94 V-0
- Reach Compliance Code :
- Compliant
- ECCN Code :
- EAR99
- Minimum Operating Temperature :
- -40.0°C
- Gender :
- RCP
- Terminal Pitch :
- 2.7686 mm
- Shell Material :
- Steel
- Contact Finish Thickness :
- Flash
- Housing Material :
- PBT
- Number of Contacts :
- 9
- Package :
- Tray
- Connector Style :
- D-Sub
- Body/Shell Style :
- PLUG
- Ingress Protection :
- -
- PCB Contact Pattern :
- STAGGERED
- Additional Feature :
- QUALITY CLASS III
- Pitch :
- 2.77mm
- Contact Type :
- Signal
- Number Of PCB Rows :
- 2
- Color :
- -
- Number of Ports :
- 1
- PPAP :
- No
- Contact Plating :
- Gold
- Mounting :
- Through Hole
- Contact Style :
- RND PIN-SKT
- Maximum Operating Temperature :
- +105°C
- Shell Finish :
- Tin
- Product Status :
- Active
- Depth :
- 12.55mm
- Voltage Rating :
- 250.0 V
- Current Rating (Amps) :
- 5A
- Body Orientation :
- RIGHT ANGLE
- Body Breadth :
- 0.492 inch
- EU RoHS :
- Compliant
- Wire Gauge :
- -
- Mating Contact Pitch :
- 0.109 inch
- Type :
- D-Subminiature
- Mounting Option 1 :
- HOLE .112-.124
- Body Depth :
- 0.482 inch
- Mounting Option 2 :
- LOCKING
- Operating Temperature :
- -55°C ~ 105°C
- Termination Type :
- Solder
- Contact Gender :
- F
- Contact Pattern :
- STAGGERED
- Features :
- -
- Current Rating :
- 3A
- Termination Method :
- Solder
- Series :
- A-DF
- Contact Form :
- Machined
- ECCN (US) :
- EAR99
- Maximum Current Rating (A) :
- 5
- Manufacturer :
- ASSMANN WSW components GmbH
- Shell Material, Finish :
- Steel, Tin Plated
- Mounting Style :
- RIGHT ANGLE
- Packaging :
- Tray
- Termination :
- Solder
- Shell Size, Connector Layout :
- 1 (DE, E)
- Backset Spacing :
- 0.374 (9.50mm)
- Contact Finish :
- Gold
- HTS Code :
- 8536.69.40.30
- Reference Standard :
- UL,VDE
- Rated Current (Signal) :
- 3 A
- Length :
- 30.8mm
- Contact Material :
- Brass
- Automotive :
- No
- Number of Positions :
- 9
- PCB Contact Row Spacing :
- 2.8448 mm
- Total Number of Contacts :
- 9
- Dielectric Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Number of Rows :
- 2
- Number of Terminals :
- 9
- Flange Feature :
- Housing/Shell (Unthreaded)
- Subcategory :
- D Type Connectors
- Terminal Length :
- 0.138 inch
- Datasheets

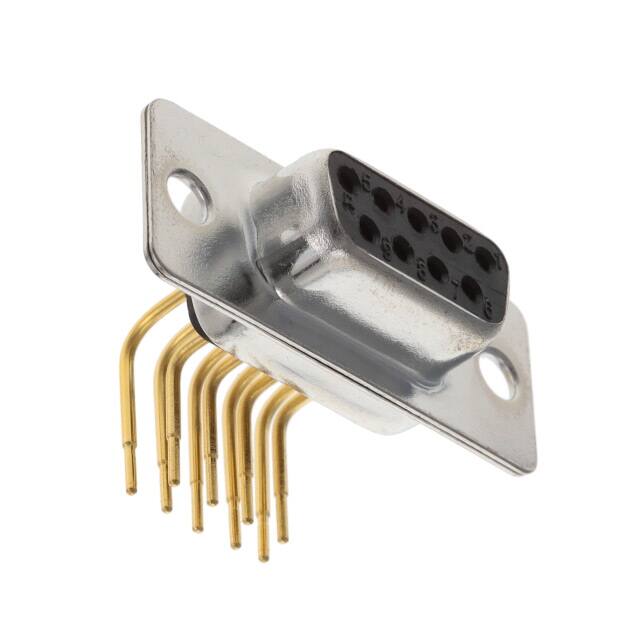

- A-DF 09 AA/Z
A-DF Series D-Sub Receptacle, Female Sockets 9-Position RCP Signal Solder 1 (DE, E) Through Hole Brass Gold Steel, Tin Plated
A-DF 09 AA/Z Overview
It comes in Receptacle, Female Sockets packaging.There is a mounting type of Through Hole for this device.It is necessary to use a Tray case for packaging the product.This product is part of the A-DF Series.Moreover, there are a number of other features, including QUALITY CLASS III, to name just a few.A variety of tasks can be managed through its 1 ports.In this case, the device operates at -55°C ~ 105°C Operating Temperature.
A-DF 09 AA/Z Features
A-DF series
A-DF 09 AA/Z Applications
There are a lot of ASSMANN WSW Components
A-DF 09 AA/Z D-Sub Connectors applications.
