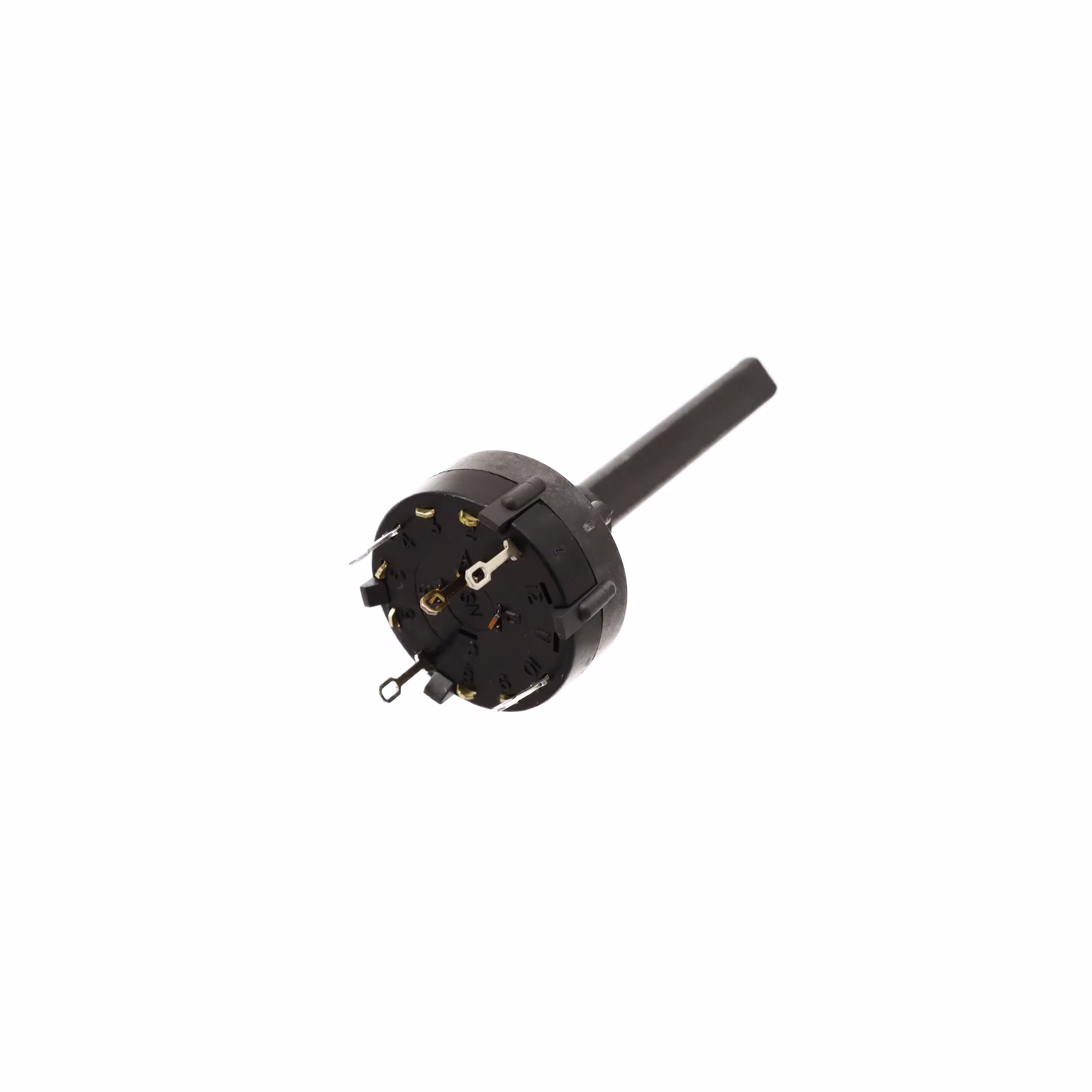

A10403RSZG

Manufacturer :

C&K

Product Category :

Termination Style :

Solder Lug

Mounting Type :

Panel Mount

Max Operating Temperature :

85°C

Orientation :

Straight

Voltage - Rated DC :

125V

Depth Behind Panel :

20.83mm

Throw Configuration :

SP4T

Actuator Type :

Flatted (6.35mm Dia)

Max Voltage Rating (AC) :

125V

Number of Decks :

1

Index Stops :

FIXED

Panel Cutout Dimensions :

Circular - 9.80mm Dia

Max Current Rating :

2.5A

Actuator Material :

Glass, Nylon

Circuit per Deck :

SP4T

Contact Style :

Shorting

Mount :

Panel

Number of Poles per Deck :

1

Actuator Length :

9.53mm

Current Rating (Amps) :

2.5A AC 350mA DC

Contact Timing :

Shorting (MBB)

Length :

26.19mm

Index Angle :

30 °

Number of Positions :

4

Max Voltage Rating (DC) :

125V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Electrical Life :

300000 cycles

Series :

A

Depth :

26.19mm

Termination :

Solder

Min Operating Temperature :

-30°C

Voltage - Rated AC :

125V

Contact Finish :

Gold

Angle of Throw :

30°

Contact Plating :

Gold, Silver

Published :

2010

Factory Lead Time :

16 Weeks

RoHS Status :

ROHS3 Compliant

Contact Material :

Silver (Ag)

Housing Material :

Nylon

Current Rating :

2.5A
