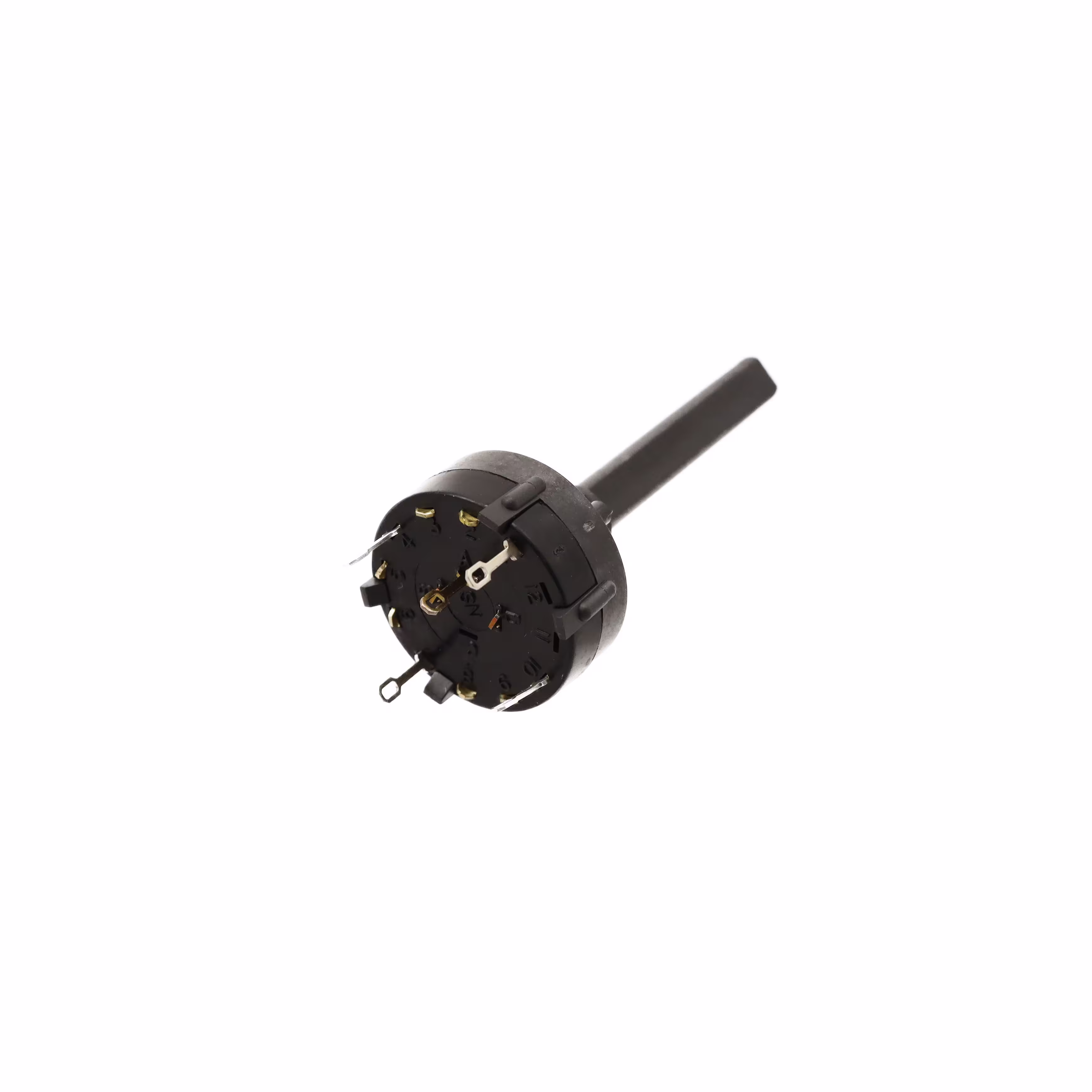

A12503RNMCQ

Manufacturer :

C&K

Product Category :

Max Voltage Rating (DC) :

125V

Electrical Life :

300000 cycles

Index Angle :

45 °

Mount :

Panel, Through Hole

Contact Material :

Silver (Ag)

Voltage - Rated AC :

125V

Factory Lead Time :

16 Weeks

Min Operating Temperature :

-30°C

Orientation :

Straight

Current Rating :

2.5A

Housing Material :

Nylon

Mounting Type :

Panel Mount, Through Hole

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Panel Cutout Dimensions :

Circular - 9.80mm Dia

Number of Decks :

1

Depth Behind Panel :

14.48mm

Circuit per Deck :

SP8T

Termination :

Modular Base

Max Current Rating :

2.5A

Actuator Material :

Glass, Nylon

Series :

A

Length :

26.19mm

Contact Timing :

Non-Shorting (BBM)

RoHS Status :

ROHS3 Compliant

Number of Positions :

8

Contact Style :

Non-Shorting

Throw Configuration :

SP, SP8T

Published :

2010

Index Stops :

FIXED

Actuator Type :

Flatted (6.35mm Dia)

Voltage - Rated DC :

125V

Actuator Length :

9.53mm

Feature :

Modular Base

Max Operating Temperature :

85°C

Contact Finish :

Silver

Current Rating (Amps) :

2.5A AC 350mA DC

Termination Style :

PC Pin

Max Voltage Rating (AC) :

125V

Depth :

26.19mm
