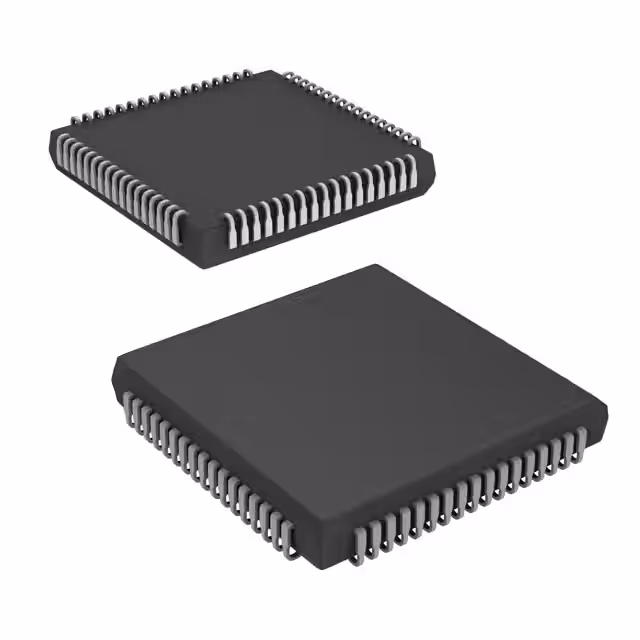

A40MX02-PL68

Manufacturer :

Microchip Technology

Product Category :

FPGAs (Field Programmable Gate Array)

Organization :

295 CLBS, 3000 GATES

Number of Usable Gates :

3000

Number of Gates :

3000

Number of Terminals :

68

Length :

24.2316 mm

Rad Hardened :

No

Operating Supply Voltage (Typ) :

3.3/5(V)

# Registers :

147

Package Shape :

Square

Frequency :

83/139(MHz)

Seated Height-Max :

4.572 mm

Process Technology :

0.45UM

Combinatorial Delay of a CLB-Max :

2.7 ns

Operating Temperature Classification :

Industrial

Reach Compliance Code :

Compliant

Qualification Status :

Not Qualified

Device System Gates :

3000

Voltage - Supply :

3V ~ 3.6V, 4.5V ~ 5.5V

Package :

Tray

Programmable :

yes

# I/Os (Max) :

57

Operating Temp Range :

-40C to 85C

JESD-30 Code :

S-PQCC-J68

Programmable Logic Type :

FIELD PROGRAMMABLE GATE ARRAY

Operating Temperature (Max) :

85C

Package Type :

PLCC

Logic Cells :

295

Base Product Number :

A40MX02

Surface Mount :

yes

Number of Equivalent Gates :

3000

Operating Supply Voltage (Min) :

3(V)

Product Status :

Obsolete

Terminal Position :

QUAD

Mounting :

Surface Mount

Peak Reflow Temperature (Cel) :

225

Operating Supply Voltage (Max) :

5.5(V)

Operating Temperature :

-40°C ~ 85°C (TA)

Number of CLBs :

295

Supplier Device Package :

68-PLCC (24.23x24.23)

Packaging :

Box

Number of Logic Blocks/Elements :

295

Series :

MX

Terminal Form :

J BEND

HTS Code :

8542.39.00.01

Operating Temperature (Min) :

-40C

Number of I/O :

57

Package / Case :

68-LCC (J-Lead)

Pin Count :

68

Width :

24.2316 mm

Temperature Grade :

Industrial

Family Name :

40MX

Mounting Type :

Surface Mount

Additional Feature :

ALSO OPERATES AT 5V SUPPLY

Terminal Pitch :

1.27 mm
