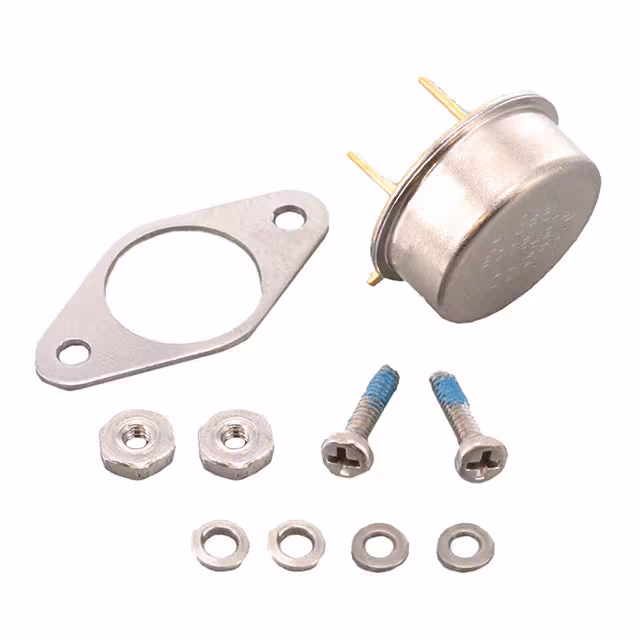

A511
Or copy the link below:
- Mfr.Part #
- A511
- Manufacturer
- MACOM Technology Solutions
- Package / Case
- TO-8 Style, 4 Lead
- Datasheet
- Download
- Description
- AMPLIFIER
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- MACOM Technology Solutions
- Product Category :
- RF Amplifiers
- Number of Pins :
- 4
- Series :
- A511
- Product Status :
- Active
- RF/Microwave Device Type :
- WIDE BAND MEDIUM POWER
- Construction :
- COMPONENT
- Subcategory :
- Wireless and RF Integrated Circuits
- Number of Terminals :
- 4
- RoHS :
- Details
- Operating Frequency-Max :
- 500 MHz
- Reach Compliance Code :
- Compliant
- Packaging :
- Bulk
- Gain :
- 17dB
- Product Category :
- RF Amplifier
- Supplier Device Package :
- TO-8
- Technology :
- Si
- RF Type :
- GENERAL PURPOSE
- Characteristic Impedance :
- 50 Ω
- Current - Supply :
- 52mA
- P1dB :
- 21dBm
- Number of Functions :
- 1
- Supply Current-Max :
- 56 mA
- Additional Feature :
- High Reliability
- Max Power Dissipation :
- 470 mW
- Input Power-Max (CW) :
- 13 dBm
- Package :
- Tray
- Brand :
- MACOM
- Noise Figure :
- 3.4dB
- Frequency :
- 5MHz ~ 500MHz
- Product Type :
- RF Amplifier
- Operating Frequency-Min :
- 10 MHz
- Power Supplies :
- 15 V
- Test Frequency :
- 5MHz ~ 500MHz
- Voltage - Supply :
- 15V
- Package / Case :
- TO-8 Style, 4 Lead
- Manufacturer :
- MACOM
- VSWR-Max :
- 2
- Datasheets
- A511
17dB General Purpose WIDE BAND MEDIUM POWER Bulk 5MHz ~ 500MHz 15V 2 P1dB:21dBm 3.4dB
A511 Overview
A cost-effective RF amplifier with WIDE BAND MEDIUM POWER RF/Microwave device type.Input RF type General Purpose of the RF amplifier.High reliability is achieved using advanced RF Amp' packaging Bulk.Shipping overseas is convenient thanks to the RF power Amplifier's packaging in TO-8 Style, 4 Lead.It is possible to supply 15V volts to the Amplifiers RF.Added features of this RF Amp include: HIGH RELIABILITYThe high power RF Amplifier can operate at a maximum frequency of 500 MHz.4 pins are on the high power RF Amplifier.Overall, the RF Amplifier contains 1 function(s).It is powered by a RF Amplifiers' current of 52mA which is used for its operation.Particularly, RF Amplifier is a type of Wireless & RF Integrated Circuits.
A511 Features
WIDE BAND MEDIUM POWER RF/Microwave Amplifier
RF Type General Purpose
15V voltage
4 pins
52mA current
A511 Applications
There are a lot of MACOM Technology Solutions
A511 RF Amplifiers applications.
- Avionics
- GPS
- GLONASS
- BeiDou
- Galileo
- Wireless communications
- ISM applications
- Wireless infrastructure
- Automated test equipment
- RF/IF gain control
