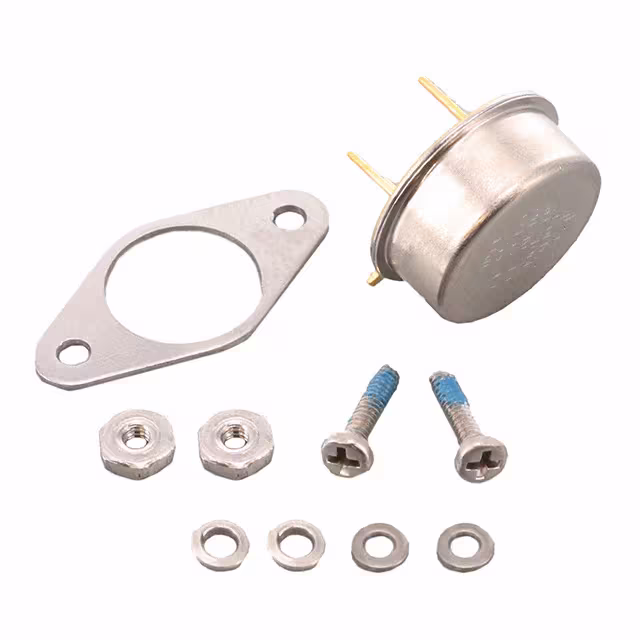

A514
Or copy the link below:
- Mfr.Part #
- A514
- Manufacturer
- MACOM Technology Solutions
- Package / Case
- TO-8 Style, 4 Lead
- Datasheet
- Download
- Description
- AMPLIFIER,TO-8
- Stock
- 48,582
- In Stock ：
- 48,582
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- MACOM Technology Solutions
- Product Category :
- RF Amplifiers
- RF/Microwave Device Type :
- NARROW BAND LOW POWER
- Package :
- Tray
- Packaging :
- Bulk
- Reach Compliance Code :
- Compliant
- Product Status :
- Active
- Operating Frequency-Max :
- 500 MHz
- Current - Supply :
- 96mA
- Voltage - Supply :
- 15V
- Brand :
- MACOM
- Product Type :
- RF Amplifier
- Construction :
- COMPONENT
- Test Frequency :
- 3MHz ~ 600MHz
- Technology :
- Si
- Additional Feature :
- LOW NOISE, HIGH RELIABILITY
- RF Type :
- GENERAL PURPOSE
- P1dB :
- 19dBm
- VSWR-Max :
- 1.8
- RoHS :
- Details
- Subcategory :
- Wireless and RF Integrated Circuits
- Characteristic Impedance :
- 50 Ω
- Product Category :
- RF Amplifier
- Package / Case :
- TO-8 Style, 4 Lead
- Frequency :
- 3MHz ~ 600MHz
- Input Power-Max (CW) :
- 13 dBm
- Gain :
- 26 dB
- Noise Figure :
- 4dB
- Supplier Device Package :
- TO-8
- Operating Frequency-Min :
- 10 MHz
- Series :
- A514
- Datasheets
- A514
26 dB General Purpose NARROW BAND LOW POWER Bulk 3MHz ~ 600MHz 15V 1.8 P1dB:19dBm 4dB
A514 Overview
An RF amplifier with a cost-effective NARROW BAND LOW POWER RF/Microwave device type.General Purpose RF Type from the RF Amplifier.High reliability is provided by the advanced RF Amp' packaging Bulk.The RF power Amplifier is conveniently packaged in TO-8 Style, 4 Lead, making it easy to ship internationally.15V voltage can be supplied by the Amplifiers RF.This RF Amp has the following additional features: LOW NOISE, HIGH RELIABILITY500 MHz is the maximum operating frequency of the high power RF Amplifier.96mA is the supply RF Amplifiers' current it uses to operate.In particular, RF Amplifier is a type of Wireless & RF Integrated Circuits.
A514 Features
NARROW BAND LOW POWER RF/Microwave Amplifier
RF Type General Purpose
15V voltage
96mA current
A514 Applications
There are a lot of MACOM Technology Solutions
A514 RF Amplifiers applications.
- Telematics (Asset Tracking and Management)
- Personal Navigation Device (PND)
- Cellular Phones with GPS
- Notebook PC
- Ultra-Mobile PC
- Recreational
- Marine Navigation
- Avionics
- GPS
- GLONASS
