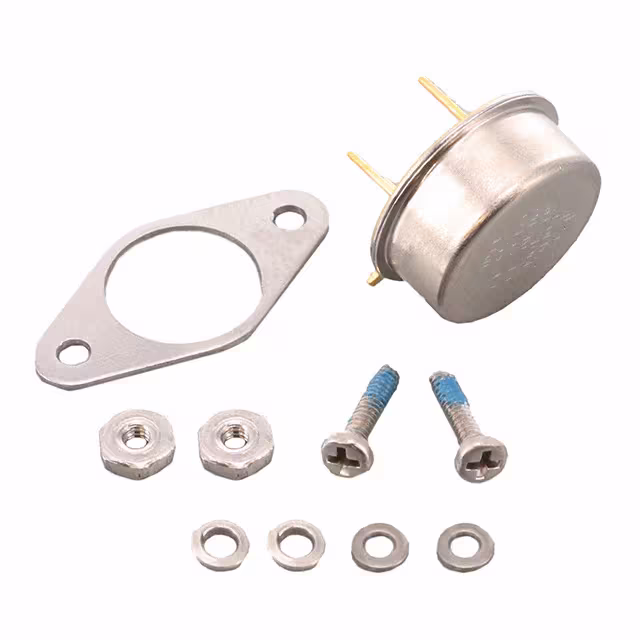

A75

Manufacturer :

MACOM Technology Solutions

Product Category :

RF Amplifiers

Noise Figure :

2.1dB

Number of Terminals :

4

P1dB :

9dBm

Mount :

Through Hole

Frequency :

600 MHz

Package :

Tray

Operating Frequency-Min :

5 MHz

Product Status :

Active

Additional Feature :

LOW NOISE, HIGH RELIABILITY

Product Type :

RF Amplifier

Product Category :

RF Amplifier

Radiation Hardening :

No

Number of Pins :

4

Reach Compliance Code :

Compliant

Series :

A75

Manufacturer :

MACOM

Pbfree Code :

yes

RF Type :

GENERAL PURPOSE

Supplier Device Package :

TO-8

Gain :

21dB

Power Supplies :

15 V

Current - Supply :

24mA

Brand :

MACOM

Subcategory :

Wireless and RF Integrated Circuits

Voltage - Supply :

15V

Technology :

Si

Number of Channels :

1

Input Power-Max (CW) :

13 dBm

VSWR-Max :

2

Min Supply Voltage :

5 V

RoHS :

Details

Operating Frequency-Max :

500 MHz

Supply Current-Max :

27 mA

Number of Functions :

1

Package / Case :

TO-8 Style, 4 Lead

Characteristic Impedance :

50 Ω

Max Supply Voltage :

20 V

Packaging :

Bulk

Test Frequency :

1MHz ~ 600MHz

RF/Microwave Device Type :

WIDE BAND LOW POWER

Construction :

COMPONENT
