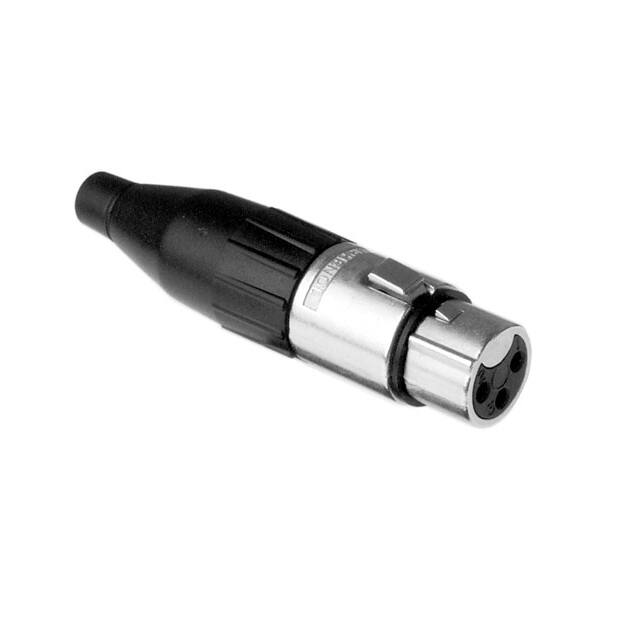

AC3F BULK

Manufacturer :

Amphenol Sine Systems

Product Category :

Circular Connector Assemblies

Current Rating :

15 A

ECCN Code :

EAR99

Shell Material :

Zinc Die Cast

Contact Resistance :

3 mΩ

Cable Opening :

0.118 ~ 0.255 (3.00mm ~ 6.48mm)

Mounting Feature :

-

Package :

Box

Shell Plating :

Nickel

Voltage Rating :

133 V

Additional Feature :

STANDARDS: IEC 268-12

DIN Conformance :

No

Primary Material :

Metal

Number of Poles :

3

Manufacturer :

Amphenol

Contact Finish - Mating :

Tin

HTS Code :

8536.69.40.10

Reach Compliance Code :

Unknown

Number of Ports :

1

Mount :

CABLE

Subcategory :

Audio and Video Connectors

Termination :

Solder

Termination Type :

Solder

Shell Size - Insert :

XLR

Brand :

Amphenol Audio

Number of Contacts :

3

Fastening Type :

Latch Lock

Shell Finish :

Nickel

Current Rating (Amps) :

15A

Ingress Protection :

IP40

Base Product Number :

AC3F

Product Type :

XLR Connectors

MIL Conformance :

No

Shielding :

Unshielded

Diameter :

19 mm

Number of Positions :

3 Position

Body/Shell Style :

Socket

Applications :

Audio

Mounting Style :

Cable Mount

IEC Conformance :

yes

Orientation :

Straight

Configuration :

1X1 VERTICAL

Contact Plating :

Tin

Contact Finish Thickness - Mating :

-

Gender :

FEMALE

Insert Material :

-

Shell Size, MIL :

-

Series :

AC

Contact Gender :

FEMALE

Product :

Cable Connectors

Operating Temperature :

-25°C ~ 75°C

Housing Material :

Zinc

Plating :

Nickel

Option :

GENERAL PURPOSE

Product Status :

Active

RoHS :

Details

Mounting Type :

Free Hanging (In-Line)

Product Category :

XLR Connectors

Connector Type :

Plug, Female Sockets

Mating Cycles :

1000 Cycle

Contact Material :

Phosphor Bronze

Termination Style :

Solder Cup

Max Operating Temperature :

75 °C

Backshell Material, Plating :

Polyphenylene Ether (PPE)

Color :

Silver

Material Flammability Rating :

UL94 V-0

Standard :

Standard XLR

Length :

82 mm

Rated Current (Signal) :

15 A

Min Operating Temperature :

-25 °C

Features :

Backshell, Cable Clamp
