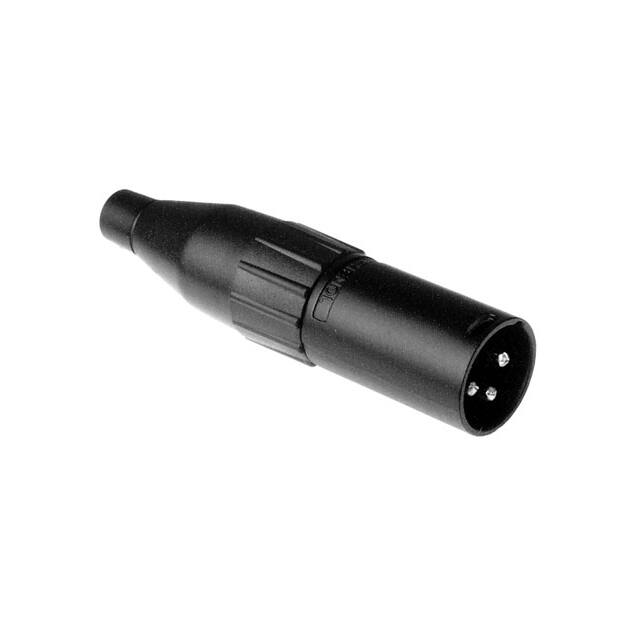

AC3MB BULK

Manufacturer :

Amphenol Sine Systems

Product Category :

Circular Connector Assemblies

Contact Plating :

Silver

Mounting Feature :

-

Orientation :

Keyed

Number of Poles :

3

DIN Conformance :

No

Shell Size - Insert :

XLR

Backshell Material, Plating :

Polyphenylene Ether (PPE)

Package :

Box

RoHS :

Details

Configuration :

1X1 VERTICAL

Termination Type :

Solder

Termination :

Solder Cup

Current Rating :

15 A

Shell Size, MIL :

-

Additional Feature :

STANDARDS: IEC 268-12

HTS Code :

8536.69.40.10

Connector Type :

Receptacle, Male Pins

Termination Style :

Solder

Brand :

Amphenol Audio

Series :

AC

Shielding :

Unshielded

Rated Current (Signal) :

15 A

Number of Ports :

1

Product Category :

XLR Connectors

Fastening Type :

Latch Holder

Base Product Number :

AC3M

Voltage Rating :

133 V

Option :

GENERAL PURPOSE

Contact Finish - Mating :

Silver

Product Type :

XLR Connectors

Shell Material :

Zinc Die Cast

Mating Cycles :

1000 Cycle

Gender :

Male

Primary Material :

Metal

IEC Conformance :

yes

MIL Conformance :

No

Operating Temperature :

-25°C ~ 75°C

Ingress Protection :

IP40

ECCN Code :

EAR99

Color :

Black

Manufacturer :

Amphenol

Features :

Backshell, Cable Clamp

Product Status :

Active

Applications :

Audio

Current Rating (Amps) :

15A

Cable Opening :

0.118 ~ 0.255 (3.00mm ~ 6.48mm)

Packaging :

Box

Product :

Cable Connectors

Contact Gender :

Male

Contact Material :

Phosphor Bronze

Material Flammability Rating :

UL94 V-0

Mounting Style :

Cable Mount

Contact Finish Thickness - Mating :

-

Standard :

Standard XLR

Contact Resistance :

3 mΩ

Shell Finish :

Black

Reach Compliance Code :

Unknown

Number of Positions :

3 Position

Subcategory :

Audio and Video Connectors

Insert Material :

-

Mounting Type :

Free Hanging (In-Line)
