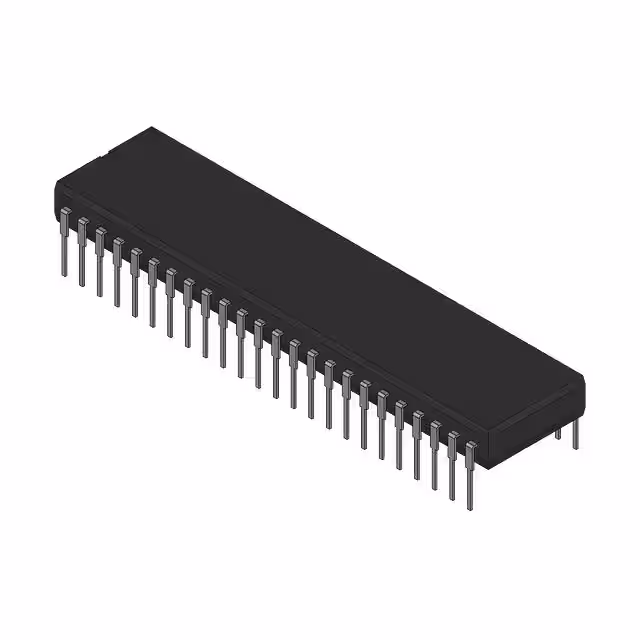

AD1385TD

Manufacturer :

Analog Devices, Inc.

Product Category :

Analog to Digital Converters (ADC)

Supplier Device Package :

48-SBDIP

Number of Inputs :

1

Package :

Bulk

Pin Count :

48

Package Shape :

RECTANGULAR

Voltage - Supply, Analog :

14.25V ~ 15.75V, ±4.75V ~ 5.25V

Operating Temperature :

-55°C ~ 125°C

Terminal Pitch :

2.54 mm

Number of Analog In Channels :

1

Terminal Position :

Dual

Analog Input Voltage-Max :

10 V

Series :

AD1385

Input Type :

Single Ended

Converter Type :

ADC, FLASH METHOD

Data Interface :

Parallel

Terminal Finish :

TIN LEAD

Sample and Hold / Track and Hold :

TRACK

Width :

15.24 mm

Reference Type :

External, Internal

Negative Supply Voltage-Nom :

-15 V

Analog Input Voltage-Min :

-10 V

Configuration :

S/H-ADC

Package / Case :

48-CDIP (0.600, 15.24mm)

Temperature Grade :

Military

Mounting Type :

Through Hole

Number of A/D Converters :

1

Output Bit Code :

COMPLEMENTARY 2S COMPLEMENT, COMPLEMENTARY OFFSET BINARY

Seated Height-Max :

5.91 mm

Sampling Rate (Per Second) :

500k

Number of Terminals :

48

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Surface Mount :

No

Architecture :

Flash

Terminal Form :

THROUGH-HOLE

Features :

-

Output Format :

PARALLEL, 8 BITS

Manufacturer :

Rochester Electronics LLC

Voltage - Supply, Digital :

14.25V ~ 15.75V, ±4.75V ~ 5.25V

JESD-609 Code :

e0

Reach Compliance Code :

Unknown

Number of Bits :

16

Product Status :

Active

Length :

62.865 mm

Number of Functions :

1

JESD-30 Code :

R-CDIP-T48

Ratio - S/H:ADC :

1:1
