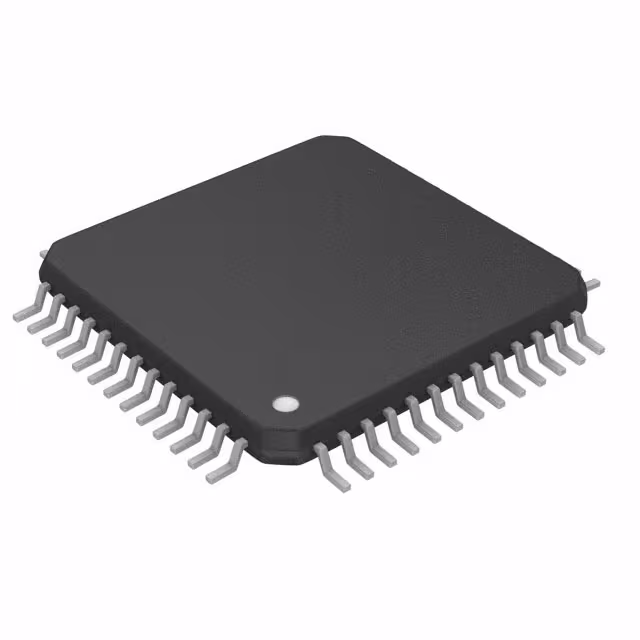

AD1839AAS
Or copy the link below:
- Mfr.Part #
- AD1839AAS
- Manufacturer
- Analog Devices, Inc.
- Package / Case
- 52-QFP
- Datasheet
- Download
- Description
- IC CODEC 2ADC/6DAC 24BIT 52-MQFP
- Stock
- 5,140
- In Stock ：
- 5,140
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Analog Devices, Inc.
- Product Category :
- CODECS
- Package Shape :
- Square
- Length :
- 10 mm
- S/N Ratio, ADCs / DACs (db) Typ :
- 105 / 108
- Product Status :
- Obsolete
- Voltage - Supply, Analog :
- 4.5V ~ 5.5V
- Resolution (Bits) :
- 24 b
- Terminal Finish :
- TIN LEAD
- Package :
- Bag
- Peak Reflow Temperature (Cel) :
- 240
- Temperature Grade :
- Industrial
- Surface Mount :
- yes
- Manufacturer :
- Rochester Electronics LLC
- Number of Functions :
- 1
- Pbfree Code :
- No
- Voltage - Supply, Digital :
- 4.5V ~ 5.5V
- Dynamic Range, ADCs / DACs (db) Typ :
- 105 / 108
- Series :
- -
- Data Interface :
- Serial
- Package / Case :
- 52-QFP
- Terminal Form :
- Gull wing
- Base Product Number :
- AD1839A
- Number of Terminals :
- 52
- Qualification Status :
- COMMERCIAL
- Terminal Pitch :
- 0.65 mm
- Width :
- 10 mm
- JESD-609 Code :
- e0
- Supply Voltage-Max (Vsup) :
- 5.5 V
- Mounting Type :
- Surface Mount
- JESD-30 Code :
- S-PQFP-G52
- Type :
- Stereo Audio
- Operating Temperature :
- -40°C ~ 85°C
- Consumer IC Type :
- CONSUMER CIRCUIT
- Terminal Position :
- QUAD
- Number of ADCs / DACs :
- 2 / 6
- Reach Compliance Code :
- Unknown
- Seated Height-Max :
- 2.45 mm
- Supplier Device Package :
- 52-MQFP (10x10)
- Pin Count :
- 52
- Supply Voltage-Min (Vsup) :
- 4.5 V
- Sigma Delta :
- yes
- Datasheets
- AD1839AAS
CODECS Analog Devices, Inc. AD1839AAS Overview
The AD1839AAS by Analog Devices, Inc. is a highly versatile audio codec featuring dual analog-to-digital converters (ADCs) and six digital-to-analog converters (DACs), all integrated into a compact 52 MQFP package. This IC delivers 24-bit precision, ensuring superior audio quality for a variety of demanding applications. The integration of multiple DACs and ADCs within a single chip not only simplifies the design of complex audio systems but also enhances performance through reduced signal latency and improved synchronization. The CODECS Analog Devices, Inc. AD1839AAS is an ideal choice for manufacturers looking to develop high-fidelity audio solutions with reliable and consistent results.
AD1839AAS Features
The AD1839AAS boasts a range of features that make it a standout option for high-end audio processing needs. It offers high-resolution 24-bit audio processing capabilities, which are essential for achieving the finest sound quality. The presence of 2 ADCs and 6 DACs allows for multiple audio input and output channels, supporting complex audio tasks. Additionally, its compatibility with a 5 V power supply and low power consumption makes it suitable for use in both portable and stationary audio applications.
AD1839AAS Applications
- Home Audio Systems: Utilizes its 6 DAC channels to provide multi-room audio distribution, allowing for a synchronized and immersive audio experience throughout different areas of a home.
- Professional Audio Equipment: The high-fidelity 24-bit ADCs and DACs enhance sound recording and mixing consoles with precise audio capturing and output, crucial for studio and live performance settings.
- Automotive Audio Systems: Employs its robust audio processing capabilities to deliver rich, high-quality sound across multiple speakers in a vehicle, enhancing the in-car entertainment experience.
- Digital Audio Effects Processors: Leverages its multiple DACs to generate a variety of audio effects in real-time, ideal for both amateur and professional music production.
- Telecommunication Devices: Takes advantage of the high precision ADCs for clear audio capture, which is essential in creating effective communication tools such as conferencing systems.
