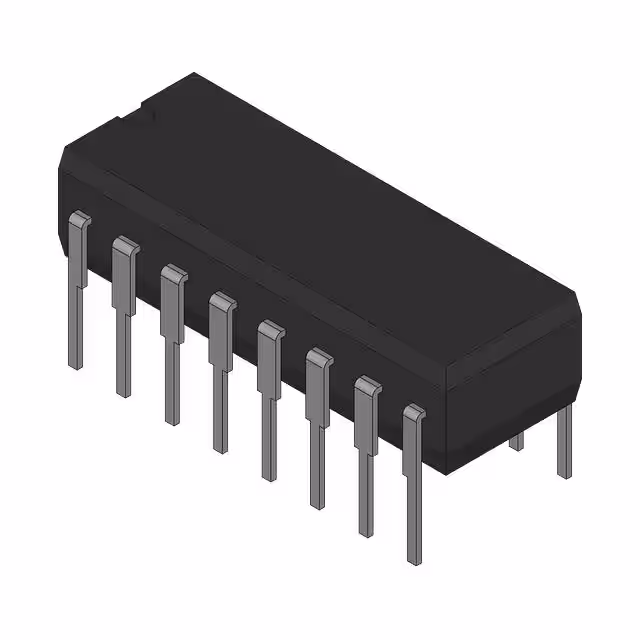

AD232JN
Or copy the link below:
- Mfr.Part #
- AD232JN
- Manufacturer
- Analog Devices, Inc.
- Package / Case
- 16-DIP (0.300, 7.62mm)
- Datasheet
- Download
- Description
- RS-232 DRIVER/RECEIVER
- Stock
- 3,382
- In Stock ：
- 3,382
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Analog Devices, Inc.
- Product Category :
- Drivers, Receivers, Transceivers
- Terminal Pitch :
- 2.54 mm
- Input Characteristics :
- Schmitt Trigger
- Product Status :
- Active
- Package Shape :
- RECTANGULAR
- JESD-30 Code :
- R-PDIP-T16
- Pbfree Code :
- No
- HTS Code :
- 8542.39.00.01
- Supplier Device Package :
- 16-PDIP
- Manufacturer :
- Rochester Electronics LLC
- Length :
- 20.13 mm
- Terminal Finish :
- TIN LEAD
- Pin Count :
- 16
- Package / Case :
- 16-DIP (0.300, 7.62mm)
- Terminal Position :
- Dual
- Receiver Number of Bits :
- 2
- Operating Temperature :
- 0°C ~ 70°C
- ECCN Code :
- EAR99
- Surface Mount :
- No
- Duplex :
- Full
- Width :
- 7.62 mm
- Series :
- AD232
- Mounting Type :
- Through Hole
- Technology :
- CMOS
- Number of Terminals :
- 16
- JESD-609 Code :
- e0
- Voltage - Supply :
- 4.5V ~ 5.5V
- Seated Height-Max :
- 5.33 mm
- Package :
- Bulk
- Interface Standard :
- EIA-232-C; V.28
- Number of Functions :
- 1
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Protocol :
- RS232
- Reach Compliance Code :
- Unknown
- Receiver Hysteresis :
- 500 mV
- Differential Output :
- No
- Data Rate :
- -
- Driver Number of Bits :
- 2
- Number of Drivers/Receivers :
- 2/2
- Temperature Grade :
- COMMERCIAL
- Terminal Form :
- THROUGH-HOLE
- Interface IC Type :
- LINE TRANSCEIVER
- Type :
- Transceiver
- Datasheets
- AD232JN
Drivers, Receivers, Transceivers Analog Devices, Inc. AD232JN Overview
The AD232JN by Analog Devices, Inc. is a high-performance RS232 driver/receiver that ensures reliable data transmission and reception across a variety of communication interfaces. This device is particularly engineered to facilitate robust serial communication with minimal external components, making it an ideal choice for developing compact and efficient communication systems. As part of the extensive Drivers, Receivers, Transceivers category, the AD232JN integrates dual drivers and receivers to support full-duplex communication, offering a comprehensive solution for serial data exchange. With its advanced design and proven performance, the Drivers, Receivers, Transceivers Analog Devices, Inc. AD232JN is perfectly suited for applications demanding high reliability and consistent performance.
AD232JN Features
The AD232JN boasts a range of features that enhance its utility in serial communication applications. Key features include:
- 5V single power supply operation, facilitating integration into existing designs without the need for additional power sources.
- Full-duplex communication capability, allowing simultaneous sending and receiving of data.
- Bipolar technology, which ensures high noise immunity and reliable operation in challenging environments.
- Low power consumption, making it suitable for portable and battery-operated devices.
- Integrated charge pump circuitry, which eliminates the need for external capacitors, thus reducing overall system size and cost.
AD232JN Applications
- Telecommunications Equipment: Utilized in modems and switches, the AD232JN enables reliable RS232 communications, ensuring robust data exchange even over long distances.
- Industrial Automation: In PLCs and CNC machines, the AD232JN provides dependable data transmission, crucial for precision control and monitoring systems.
- Point of Sale Systems: Supports reliable data handling in POS terminals, enhancing transaction processing capabilities.
- Medical Devices: Essential for communication in medical equipment, the AD232JN ensures accurate data transfer, critical for patient monitoring and diagnostics.
- Computing Interfaces: Used in serial ports for computers and peripherals, enabling consistent data flow and connectivity.
