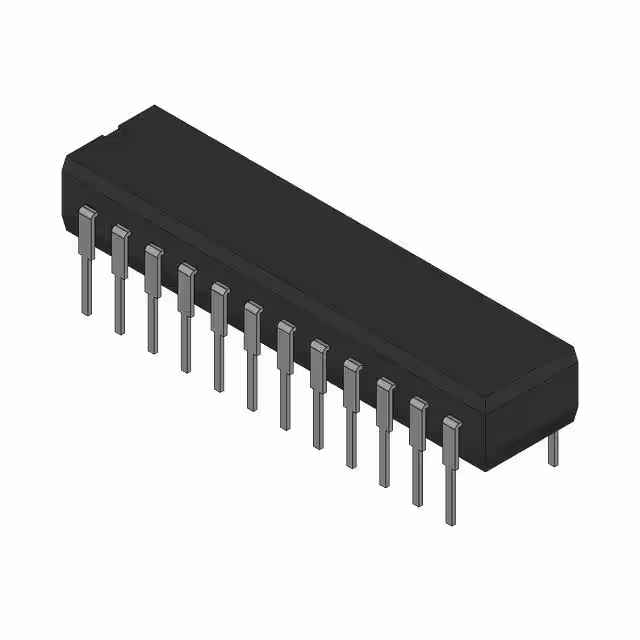

AD5201BD

Manufacturer :

Analog Devices, Inc.

Product Category :

Digital Potentiometers

Reach Compliance Code :

Unknown

Negative Supply Voltage-Nom :

-15 V

Number of Analog In Channels :

1

JESD-609 Code :

e0

Manufacturer :

Rochester Electronics LLC

Number of Taps :

33

Series :

AD5201

Temperature Grade :

Other

Number of Circuits :

1

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Number of Functions :

1

Interface :

SPI

Terminal Position :

Dual

Analog Input Voltage-Min :

-5 V

Tolerance :

±30%

Resistance (Ohms) :

-

Voltage - Supply :

2.7V ~ 5.5V, ±2.3V ~ 2.7V

JESD-30 Code :

R-CDIP-T24

Package Shape :

RECTANGULAR

Temperature Coefficient (Typ) :

500ppm/°C

Package :

Bulk

Supplier Device Package :

24-CDIP

Number of Bits :

12

Conversion Time-Max :

50 µs

Number of Terminals :

24

Converter Type :

ADC, SUCCESSIVE APPROXIMATION

Operating Temperature :

-40°C ~ 85°C

Taper :

Linear

Product Status :

Active

Pbfree Code :

No

Analog Input Voltage-Max :

5 V

Output Format :

SERIAL, PARALLEL, WORD

Features :

-

Terminal Form :

THROUGH-HOLE

Memory Type :

Volatile

Mounting Type :

Through Hole

Surface Mount :

No

Sample and Hold / Track and Hold :

SAMPLE

Pin Count :

24

Linearity Error-Max (EL) :

0.0122%

Configuration :

Potentiometer

Package / Case :

24-CDIP (0.300, 7.62mm)

Terminal Finish :

TIN LEAD

Output Bit Code :

BINARY
