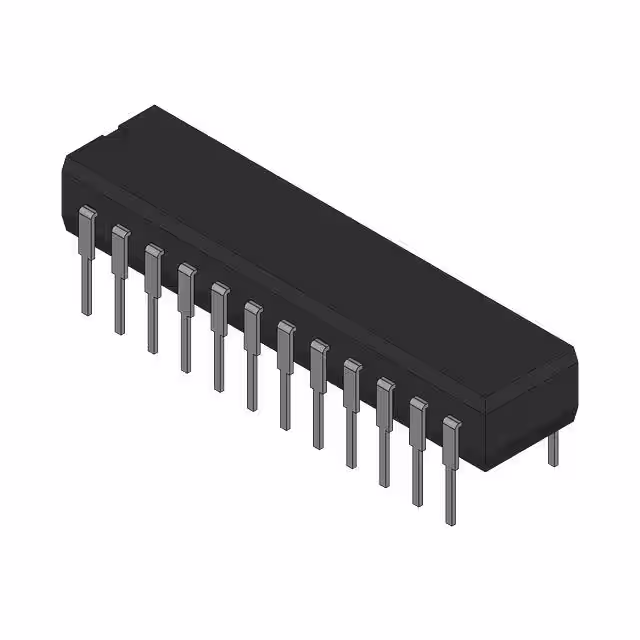

AD671KD-500

Manufacturer :

Analog Devices, Inc.

Product Category :

Analog to Digital Converters (ADC)

Sample and Hold / Track and Hold :

SAMPLE

Series :

AD671

JESD-609 Code :

e0

Analog Input Voltage-Max :

5 V

Terminal Position :

Dual

Pin Count :

24

Package Shape :

RECTANGULAR

Seated Height-Max :

5.08 mm

Conversion Time-Max :

0.5 µs

Features :

-

Operating Temperature :

0°C ~ 70°C

HTS Code :

8542.39.00.01

Supplier Device Package :

24-CDIP

Input Type :

Differential, Single Ended

Voltage - Supply, Analog :

4.75V ~ 5.25V

Subcategory :

Analog to Digital Converters

Number of Functions :

1

Terminal Pitch :

2.54 mm

Width :

7.62 mm

Voltage - Supply, Digital :

4.75V ~ 5.25V

Ratio - S/H:ADC :

-

ECCN Code :

EAR99

Converter Type :

ADC, FLASH METHOD

Reach Compliance Code :

Unknown

JESD-30 Code :

R-CDIP-T24

Negative Supply Voltage-Nom :

-5 V

Number of Terminals :

24

Data Interface :

Parallel

Length :

30.48 mm

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Power Supplies :

+-5 V

Technology :

BICMOS

Manufacturer :

Analog Devices Inc

Product Status :

Active

Configuration :

-

Number of Bits :

12

Terminal Finish :

Tin/Lead (Sn/Pb)

Architecture :

Flash

Analog Input Voltage-Min :

-5 V

Package :

Bulk

Output Bit Code :

BINARY, OFFSET BINARY, 2S COMPLEMENT BINARY

Reference Type :

External

Temperature Grade :

COMMERCIAL

Sampling Rate (Per Second) :

2m

Output Format :

PARALLEL, WORD

Mounting Type :

Through Hole

Package / Case :

24-CDIP (0.300, 7.62mm)

Linearity Error-Max (EL) :

0.0488%

Surface Mount :

No

Number of Inputs :

1

Qualification Status :

Not Qualified

Number of Analog In Channels :

1

Terminal Form :

THROUGH-HOLE
