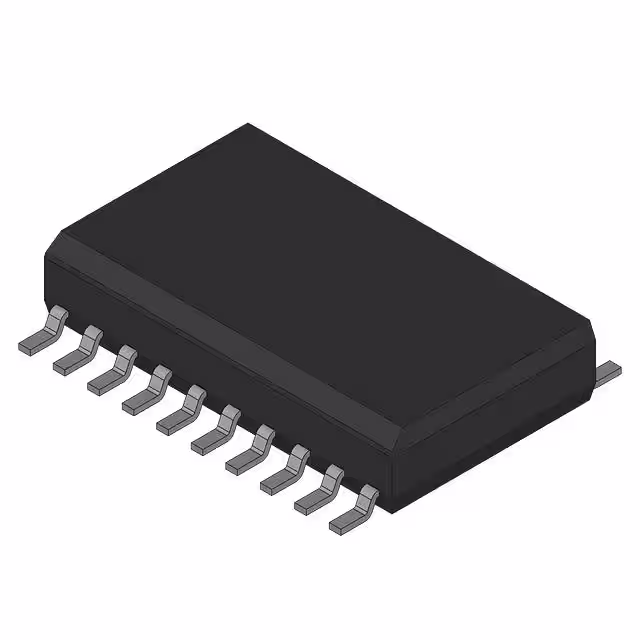

AD7701BR-REEL

Manufacturer :

Analog Devices, Inc.

Product Category :

Analog to Digital Converters (ADC)

ECCN Code :

EAR99

Temperature Grade :

Industrial

Number of Analog In Channels :

1

Pin Count :

20

Height Seated (Max) :

2.65mm

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Operating Temperature (Max) :

85°C

Qualification Status :

Not Qualified

Number of Functions :

1

Number of Pins :

20

Power Supplies :

+-5V

Resolution :

2 B

JESD-609 Code :

e0

Negative Supply Voltage-Nom :

-5V

Analog Input Voltage-Max :

2.5V

Number of Channels :

1

Operating Temperature (Min) :

-40°C

Power Dissipation :

37mW

Pbfree Code :

No

Capacitance - Input :

10pF

Terminal Form :

Gull wing

Converter Type :

ADC, DELTA-SIGMA

Peak Reflow Temperature (Cel) :

240

Width :

7.5mm

Analog Input Voltage-Min :

-2.5V

Terminal Position :

Dual

Output Format :

Serial

Number of Bits :

16

Sample and Hold / Track and Hold :

SAMPLE

Output Bit Code :

BINARY, OFFSET BINARY

Surface Mount :

yes

Sampling Rate :

4 ksps

Package / Case :

SOIC W

Supply Voltage :

5V

Number of Terminations :

20

RoHS Status :

RoHS Compliant

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Lead Free :

Contains Lead
