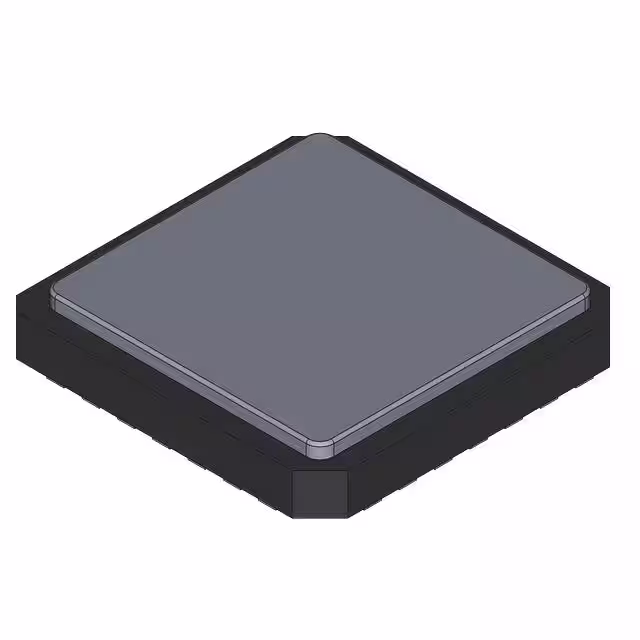

AD9700SEB
Or copy the link below:
- Mfr.Part #
- AD9700SEB
- Manufacturer
- Analog Devices, Inc.
- Package / Case
- 28-CLCC
- Datasheet
- Download
- Description
- DAC, PARALLEL, 8 BITS INPUT
- Stock
- 34,969
- In Stock ：
- 34,969
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Analog Devices, Inc.
- Product Category :
- ADCs/DACs - Special Purpose
- Qualification Status :
- Not Qualified
- Number of Bits :
- 8
- Number of Functions :
- 1
- JESD-30 Code :
- S-XQCC-N28
- Reach Compliance Code :
- Unknown
- Data Interface :
- Parallel
- Operating Temperature :
- -25°C ~ 85°C
- Converter Type :
- D/A CONVERTER
- Terminal Finish :
- Tin/Lead (Sn/Pb)
- Terminal Position :
- QUAD
- Manufacturer :
- Analog Devices Inc
- Input Bit Code :
- COMPLEMENTARY BINARY
- Settling Time-Max :
- 0.012 µs
- Number of Terminals :
- 28
- Series :
- -
- Sampling Rate (Per Second) :
- 125M
- ECCN Code :
- EAR99
- Temperature Grade :
- Military
- Supply Current-Max :
- 155 mA
- Screening Level :
- MIL-STD-883 Class B (Modified)
- Terminal Form :
- NO LEAD
- Linearity Error-Max (EL) :
- 0.2%
- Technology :
- Bipolar
- Package :
- Bulk
- Surface Mount :
- yes
- Package / Case :
- 28-CLCC
- Supplier Device Package :
- 28-CLCC (11.43x11.43)
- Voltage Supply Source :
- Single Supply
- Negative Supply Voltage-Nom :
- -5.2 V
- Package Shape :
- Square
- Terminal Pitch :
- 1.27 mm
- JESD-609 Code :
- e0
- HTS Code :
- 8473.30.11.80
- Voltage - Supply :
- 4.95V ~ 5.45V, 4.95V ~ 5.45V
- Power Supplies :
- -5.2 V
- Subcategory :
- Other Converters
- Type :
- DAC
- Resolution (Bits) :
- 8 b
- Mounting Type :
- Surface Mount
- Product Status :
- Active
- Number of Channels :
- 1
- Datasheets
- AD9700SEB
ADCs/DACs - Special Purpose Analog Devices, Inc. AD9700SEB Overview
The AD9700SEB from Analog Devices, Inc. is a high-performance digital-to-analog converter (DAC) designed for precision applications in demanding environments. This component boasts a parallel 8-bit input interface that enables fast data transfer and low-latency performance, making it ideal for integration into advanced digital systems. With its robust design and high reliability, the ADCs/DACs - Special Purpose Analog Devices, Inc. AD9700SEB is perfectly suited for businesses looking to leverage advanced technology for industrial, communication, and automation applications. This DAC not only ensures precise analog output but also enhances system performance through its efficient data handling capabilities.
AD9700SEB Features
The AD9700SEB offers several key features that make it a standout choice for a variety of applications. Its high-speed parallel interface facilitates swift digital-to-analog conversion, ensuring minimal delay and high throughput. The 8-bit resolution of this DAC allows for fine granularity in output signals, enhancing the accuracy of the resultant analog output. Additionally, the device is designed to operate efficiently with low power consumption, making it suitable for use in power-sensitive applications.
AD9700SEB Applications
- Telecommunications Equipment: Utilizes the AD9700SEB to convert digital signals into analog form for transmission over various communication channels, improving signal quality and bandwidth utilization.
- Audio and Video Broadcasting: Employs this DAC for accurate and efficient digital-to-analog conversion, critical for maintaining high fidelity in broadcast systems.
- Industrial Control Systems: In industrial settings, the AD9700SEB facilitates precise control of actuators and sensors, converting digital command signals into analog outputs that drive mechanical components.
- Medical Equipment: Uses the AD9700SEB to handle complex signal processing tasks, ensuring accurate analog representation of digital diagnostic data, vital for imaging and patient monitoring systems.
