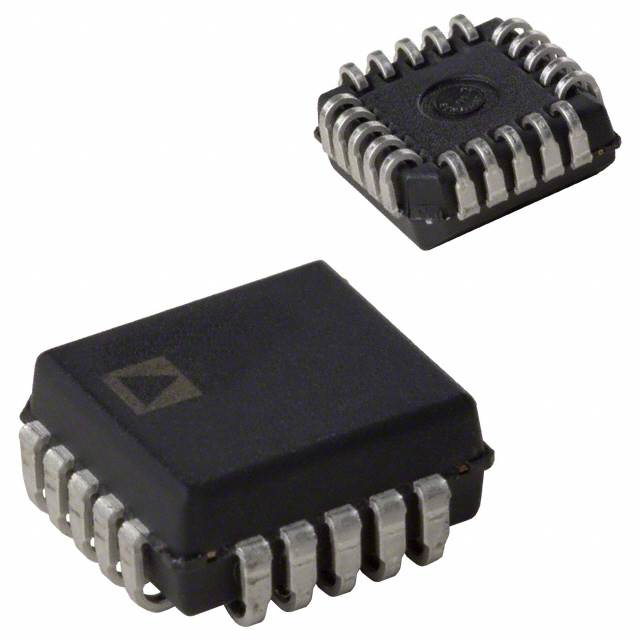

AD9901KP-REEL

Manufacturer :

Analog Devices, Inc.

Product Category :

Clock Generators, PLLs, Frequency Synthesizers

Pbfree Code :

No

Ratio - Input:Output :

2:1

Seated Height-Max :

4.57 mm

Additional Feature :

ALSO OPERATES AT -5.2 V SUPPLY

Terminal Position :

QUAD

Manufacturer :

Rochester Electronics LLC

Package Shape :

Square

Output :

CMOS, ECL, TTL

Mounting Type :

Surface Mount

PLL :

yes

Terminal Pitch :

1.27 mm

Divider/Multiplier :

-

Supply Voltage-Max (Vsup) :

5.25 V

Number of Functions :

1

Frequency - Max :

200MHz

Qualification Status :

COMMERCIAL

Product Status :

Obsolete

Base Product Number :

AD9901

Surface Mount :

yes

Voltage - Supply :

5V

Length :

8.9662 mm

Supply Voltage-Min (Vsup) :

4.75 V

Reach Compliance Code :

Unknown

Package :

Bulk

Type :

Digital Phase/Frequency Discriminator

Pin Count :

20

Analog IC - Other Type :

PHASE DETECTOR

Package / Case :

20-LCC (J-Lead)

Differential - Input:Output :

Yes/Yes

Temperature Grade :

COMMERCIAL

Number of Terminals :

20

Series :

*

JESD-609 Code :

e0

Input :

CMOS, ECL, TTL

Supplier Device Package :

20-PLCC (9x9)

Terminal Finish :

TIN LEAD

Terminal Form :

J BEND

Peak Reflow Temperature (Cel) :

225

Width :

8.9662 mm

JESD-30 Code :

S-PQCC-J20
