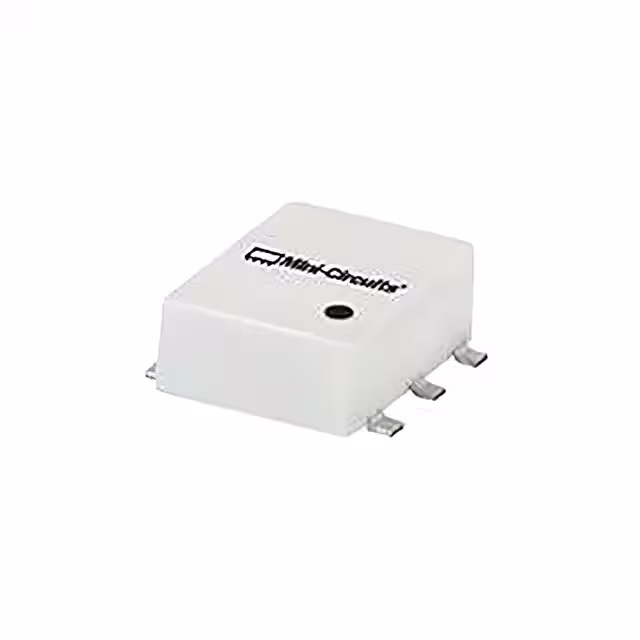

ADE-11X+

Manufacturer :

Mini-Circuits

Product Category :

RF Mixers

VSWR-Max :

3.74

Operating Frequency-Max :

2000MHz

Product Category :

RF Mixer

Brand :

Mini-Circuits

RF/Microwave Device Type :

DOUBLE BALANCED

Series :

ADE

Mounting Style :

SMD/SMT

Reach Compliance Code :

Compliant

Terminal Finish :

Tin/Lead (Sn/Pb)

Input Power-Max (CW) :

17dBm

Manufacturer :

Mini-Circuits

Mounting Feature :

Surface Mount

Conversion Loss-Max :

9.8 dB

Maximum Operating Temperature :

+ 85 C

Minimum Operating Temperature :

- 40 C

Surface Mount :

yes

Operating Frequency-Min :

10MHz

Technology :

Si

Package / Case :

7.87 mm x 5.59 mm x 2.84 mm

Operating Temperature (Min) :

-40°C

RF Frequency :

10 MHz to 2000 MHz

ECCN Code :

EAR99

Packaging :

MouseReel

JESD-609 Code :

e0

LO Frequency :

10 MHz to 2000 MHz

Product Type :

RF Mixer

Operating Temperature (Max) :

85°C

Construction :

COMPONENT

RoHS :

Details

RoHS Status :

Non-RoHS Compliant

Pbfree Code :

No

Number of Terminals :

6
