ADM1020AR-REEL7

Manufacturer :

Analog Devices, Inc.

Product Category :

Thermal Management

Peak Reflow Temperature (Cel) :

Not Applicable

Reach Compliance Code :

Unknown

Package Shape :

RECTANGULAR

Temperature Grade :

Other

Output Fan :

No

Surface Mount :

yes

Qualification Status :

COMMERCIAL

Sensor Type :

Internal and External

Supply Voltage-Max (Vsup) :

3.6 V

Output Alarm :

yes

Terminal Position :

Dual

Manufacturer :

Rochester Electronics LLC

Product Status :

Active

Terminal Form :

Gull wing

Series :

-

Supplier Device Package :

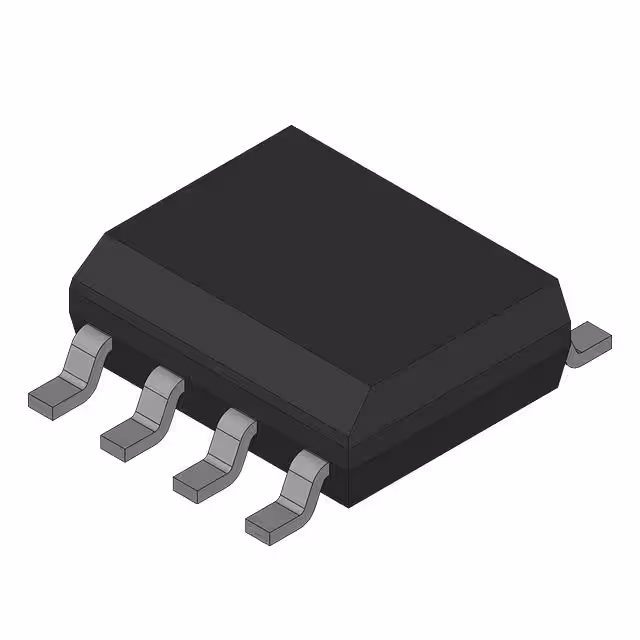

8-SOIC

Package / Case :

8-SOIC (0.154, 3.90mm Width)

JESD-30 Code :

R-PDSO-G8

Sensing Temperature :

-

Terminal Finish :

TIN LEAD

Function :

Temperature Monitor

Terminal Pitch :

1.27 mm

Supply Voltage-Min (Vsup) :

3 V

Width :

3.9 mm

Output Type :

SMBus

Analog IC - Other Type :

ANALOG CIRCUIT

Number of Functions :

1

Accuracy :

±1°C

Voltage - Supply :

3V ~ 5.5V

Length :

4.9 mm

JESD-609 Code :

e0

Seated Height-Max :

1.75 mm

Pin Count :

8

Pbfree Code :

No

Package :

Bulk

Operating Temperature :

-55°C ~ 125°C

Topology :

ADC

Number of Terminals :

8

Mounting Type :

Surface Mount
