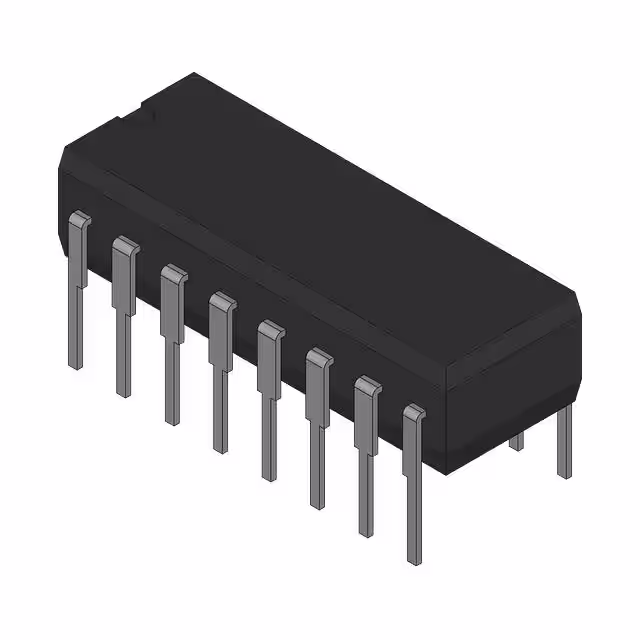

ADM800MAN

Manufacturer :

Analog Devices, Inc.

Product Category :

Supervisors

Width :

7.62 mm

Series :

-

Pin Count :

16

Supplier Device Package :

16-PDIP

Seated Height-Max :

5.33 mm

JESD-30 Code :

R-PDIP-T16

Reset :

Active High/Active Low

Terminal Finish :

TIN LEAD

Base Product Number :

ADM800

Length :

20.13 mm

Adjustable Threshold :

No

Output :

Open Drain or Open Collector

Number of Channels :

1

Product Status :

Active

Terminal Pitch :

2.54 mm

Operating Temperature :

-40°C ~ 85°C

Package Shape :

RECTANGULAR

Number of Terminals :

16

Temperature Grade :

Industrial

Terminal Form :

THROUGH-HOLE

Supply Voltage-Max (Vsup) :

5.5 V

Number of Functions :

1

JESD-609 Code :

e0

Package / Case :

16-DIP (0.300, 7.62mm)

Mounting Type :

Through Hole

Type :

Simple Reset/Power-On Reset

Reach Compliance Code :

Unknown

Surface Mount :

No

Voltage - Threshold :

4.4V

Additional Feature :

RESET THRESHOLD VOLTAGE IS 4.4V

Peak Reflow Temperature (Cel) :

Not Applicable

Reset Timeout :

140ms Minimum

Terminal Position :

Dual

Pbfree Code :

No

Package :

Bulk

Analog IC - Other Type :

POWER SUPPLY MANAGEMENT CIRCUIT

Number of Voltages Monitored :

1
