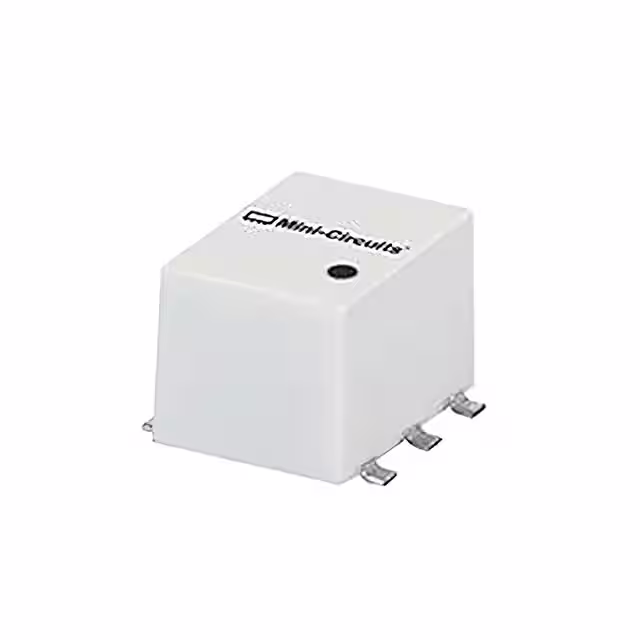

ADP-2-1+

Manufacturer :

Mini-Circuits

Product Category :

RF Power Dividers/Splitters

Series :

ADP

Maximum Operating Temperature :

+ 85 C

Reach Compliance Code :

not_compliant

Characteristic Impedance :

50 Ω

Type :

2-Way Core, Wire Power Splitter

Termination Style :

SMD/SMT

Minimum Operating Temperature :

- 40 C

Pbfree Code :

No

Operating Frequency-Max :

400 MHz

Insertion Loss :

0.5 dB

Brand :

Mini-Circuits

Specifications :

Isolation (Min) 20dB, 3° Imbalance (Max)

Packaging :

MouseReel

Frequency Range :

0.5 MHz to 400 MHz

Subcategory :

Filters

Additional Feature :

ISOLATION-MIN (DB):20

Product :

Splitter Filter Modules

Product Type :

Signal Conditioning

Terminal Finish :

Tin/Lead (Sn/Pb)

Impedance :

50 Ohms

VSWR-Max :

1.12

Manufacturer :

Mini-Circuits

JESD-609 Code :

e0

Product Status :

Active

Size / Dimension :

0.310 L x 0.220 W x 0.162 H (7.87mm x 5.58mm x 4.11mm)

Package / Case :

7.87 mm x 5.59 mm x 4.11 mm

Frequency :

400 MHz

Input Power-Max (CW) :

26.99 dBm

Operating Frequency-Min :

0.5 MHz

RoHS :

Details

Construction :

COMPONENT

Mounting :

SMD/SMT

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Product Category :

Signal Conditioning

RF/Microwave Device Type :

COMBINER
