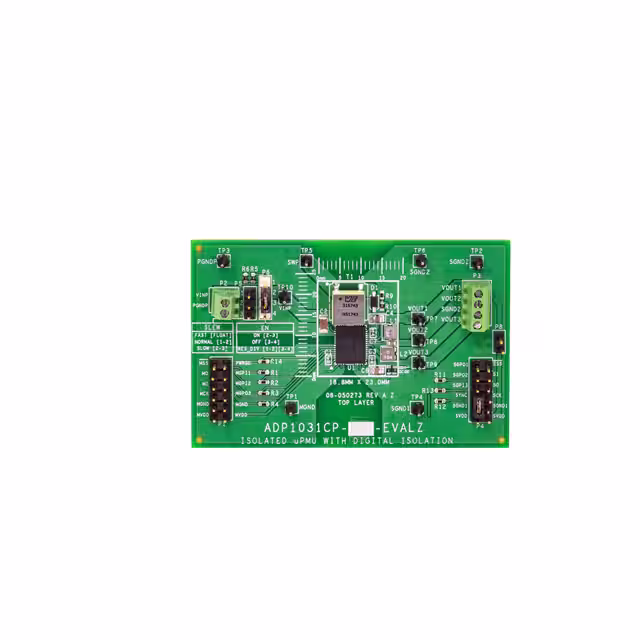

ADP1031ACPZ-2

Manufacturer :

Analog Devices, Inc.

Product Category :

Power Supply Controllers, Monitors

Package :

Tray

Maximum Operating Temperature :

+ 125 C

Maximum Working Insulation Voltage :

265Vp

Applications :

GENERAL PURPOSE

Maximum Quiescent Supply Current (mA) :

1.77(Typ)

Maximum Power Dissipation (mW) :

216.5(Typ)

Minimum Operating Temperature (°C) :

-40

Supplier Device Package :

41-LFCSP (9x7)

Maximum Data Rate :

100kbps

ECCN (US) :

EAR99

Number of Channels per Chip :

7

Minimum Operating Supply Voltage (V) :

4.5

Voltage - Supply :

2.3V ~ 5.5V

Output Voltage Range :

- 24 V to 28 V

Maximum Propagation Delay Time (tPLH) (ns) :

11

Package Length :

9

Minimum Common Mode Rejection (kV/us) :

100(Typ)

Package Width :

7

Input Current :

1.77 mA

Mounting Type :

Surface Mount

Minimum Pulse Width (ns) :

100

RoHS Status :

RoHS Compliant

Voltage - Input :

4.5V ~ 60V

Type :

GENERAL PURPOSE

Output Current :

300 mA

Maximum Fall Time (ns) :

2.5(Typ)

Maximum Propagation Delay Time (tPHL) (ns) :

11

Minimum Operating Temperature :

- 40 C

Packaging :

Tray

Input Voltage Range :

4.5 V to 60 V

Package Height :

0.93

PCB changed :

41

Supplier Package :

LFCSP EP

Coupling Type :

Magnetic Coupling

AEC Qualified :

No

Maximum Operating Supply Voltage (V) :

60

Mounting Style :

SMD/SMT

Series :

-

Package / Case :

41-VFQFN Exposed Pad, CSP

Pin Count :

41

Product Status :

Active

Maximum Rise Time (ns) :

2.5(Typ)

Minimum Isolation Voltage (Vrms) :

2500

Base Product Number :

ADP1031

Operating Temperature :

-40°C ~ 125°C (TJ)

Maximum Pulse Width Distortion (ns) :

0.25(Typ)

Mounting :

Surface Mount

Output Type :

Logic

HTS :

8542.39.00.01

Maximum Operating Temperature (°C) :

125
