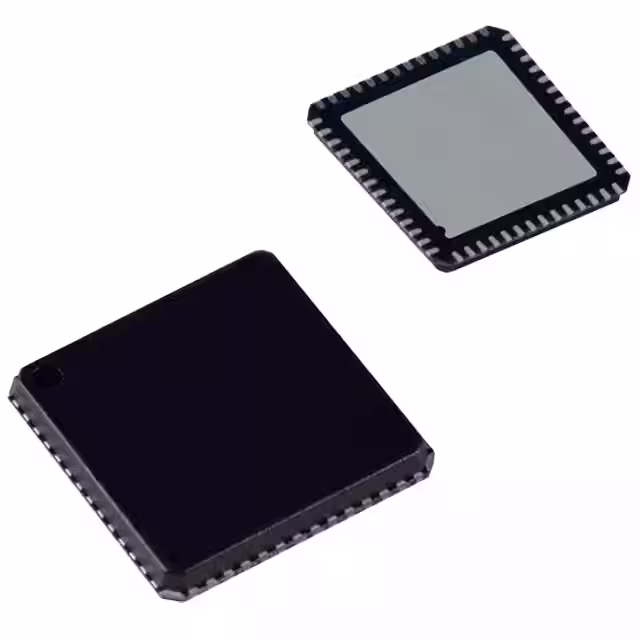

ADUC812BCP

Manufacturer :

Analog Devices, Inc.

Product Category :

Microcontrollers

Speed :

11.0592 MHz

Lead Free :

Contains Lead

Mount :

Surface Mount

Reach Compliance Code :

not_compliant

Contact Plating :

Lead, Tin

Terminal Pitch :

0.5mm

Terminal Position :

QUAD

Pin Count :

56

Package / Case :

LFCSP EP

DAC Channels :

yes

Peak Reflow Temperature (Cel) :

240

Number of Timers/Counters :

3

Min Operating Temperature :

-40°C

Memory Type :

Flash

Interface :

2-Wire, I2C, SPI, UART

Height Seated (Max) :

1mm

Supply Voltage :

3V

Frequency :

16MHz

RoHS Status :

Non-RoHS Compliant

Terminal Finish :

Tin/Lead (Sn85Pb15)

Number of I/O :

32

Number of Pins :

56

Number of Programmable I/O :

32

Temperature Grade :

Industrial

Packaging :

Bulk

RAM Size :

256B

Max Supply Voltage :

5.25V

Address Bus Width :

24

Terminal Form :

NO LEAD

ECCN Code :

EAR99

Data Bus Width :

8B

Min Supply Voltage :

2.7V

JESD-609 Code :

e0

Length :

8mm

Qualification Status :

Not Qualified

Access Time :

16 μs

Frequency (Max) :

16MHz

Time@Peak Reflow Temperature-Max (s) :

30

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Bit Size :

8

Number of Terminations :

56

uPs/uCs/Peripheral ICs Type :

MICROCONTROLLER

PWM Channels :

No

Core Architecture :

8052

Memory Size :

8kB

Max Operating Temperature :

85°C

DMA Channels :

yes

Has ADC :

yes
