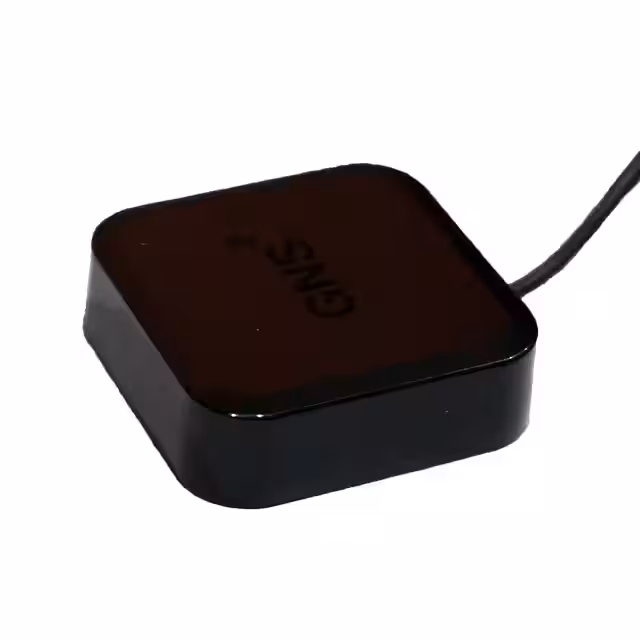

AEARBA048014-SG3

Manufacturer :

Abracon

Product Category :

RF Antennas

Additional Feature :

SMA-M

Input Impedance :

50Ohm

Antenna Mounting :

Adhesive

Center Frequency :

1561.098 MHz, 1575.42 MHz, 1602 MHz

Minimum Operating Temperature :

- 40 C

Packaging :

Bulk

Mounting Type :

Adhesive

Cable Type :

5 M 2.7 mm RG174

Package :

Box

Return Loss :

-

RF Family/Standard :

Navigation

Feature :

Cable - 5m, LNA

Characteristic Impedance :

50 Ω

Polarization :

RHCP

Antenna Type :

Puck

Subcategory :

Antennas

Impedance :

50 Ohms

RF/Microwave Device Type :

GPS ANTENNA

Frequency (Center/Band) :

1.561GHz 1.575GHz 1.602GHz

Product Category :

Antennas

Height (Max) :

0.551 14.00mm

Termination :

SMA

Construction :

Coaxial

Cable Length :

5 mm

Application :

M2M, Surveillance, Fleet Management, Asset Tracking, Autonomous Driving, Telematics, Agriculture, Instrumentation

RoHS Status :

RoHS Compliant

Reach Compliance Code :

Compliant

Mounting Style :

Adhesive Mount

Product Type :

Multiband Antennas

Height :

14 mm

Operating Frequency-Max :

1610 MHz

Maximum Operating Temperature :

+ 85 C

Applications :

Beidou, Galileo, GLONASS, GNSS, GPS

Operating Frequency-Min :

1559.052 MHz

Gain :

5.78dBi, 4.27dBi, 5.65dBi

Width :

47 mm

Series :

AEAR

Length :

48.5 mm

VSWR-Max :

2

RoHS :

Details

Features :

Cable - 5m, LNA

Product Status :

Active

VSWR :

2

Termination Style :

Connector

Input Power :

-

Product :

Outdoor Antennas

Frequency Group :

UHF 1GHz~2GHz

Brand :

ABRACON

Manufacturer :

ABRACON

Antenna Connector Type :

SMA Male

Frequency Range :

1.559GHz~1.610GHz

Type :

Active Antenna

Number of Bands :

1

Style :

Square

Ingress Protection :

-

Moisture Sensitivity Level (MSL) :

Not Applicable
