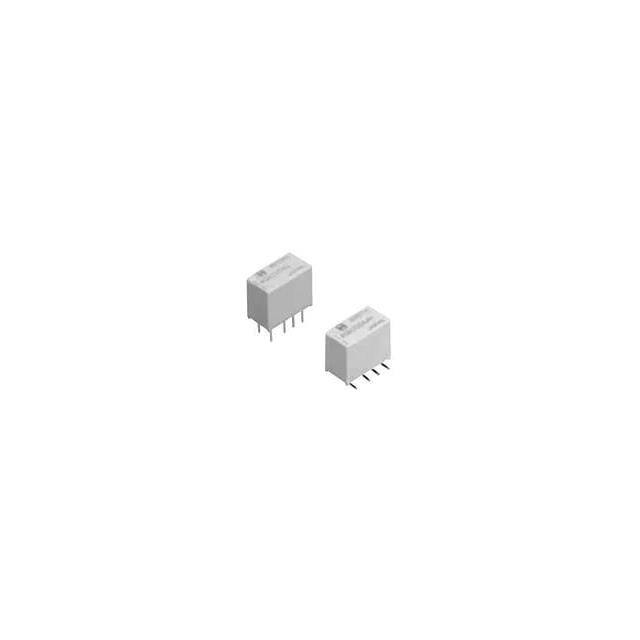

AGN2104HJ

Manufacturer :

Panasonic

Product Category :

Signal Relays, Up to 2 Amps

Release Time :

4 ms

Maximum Power Rating :

30W/37.5VA

Coil Resistance :

202.5(ohm)

Contact Form :

2 Form C

Seal :

Sealed

Operating Temp Range :

-40C to 85C

Seal Rating :

-

Relay Type :

Telecom

Coil Type :

Latching, Single Coil

Series :

AGN

Relay Construction :

Latching Single Coil

Product Status :

Active

Must Operate Voltage :

3.38 VDC

Voltage Rating (VAC) :

125(V)

Mounting Style :

Through Hole

Product Length (mm) :

10.6(mm)

Pin Count :

8

Operating Temperature :

-40°C ~ 85°C

Product Height (mm) :

9(mm)

Dropout Volt :

3.375VDC

Package :

Bulk

Operate Time :

4(ms)

Coil Voltage DC :

4.5

Rad Hardened :

No

Features :

-

Termination Style :

PC Pin

Coil Suppression Diode :

No

Contact Material :

Silver Palladium (AgPd), Gold (Au)

Mounting Type :

Through Hole

Type :

Slim Relay

Contact Current Rating :

1(A)

Coil Voltage :

4.5VDC

Product Depth (mm) :

5.7(mm)

Coil Current :

22.2(mA)

Voltage Rating (VDC) :

110(V)

Contact Rating (Current) :

1 A

Contact Arrangement :

DPDT

Must Release Voltage :

-

Coil Insulation :

-

LED Indicator :

No

Switching Voltage :

125VAC, 110VDC - Max

Pick-up Voltage (Max) :

3.375VDC
