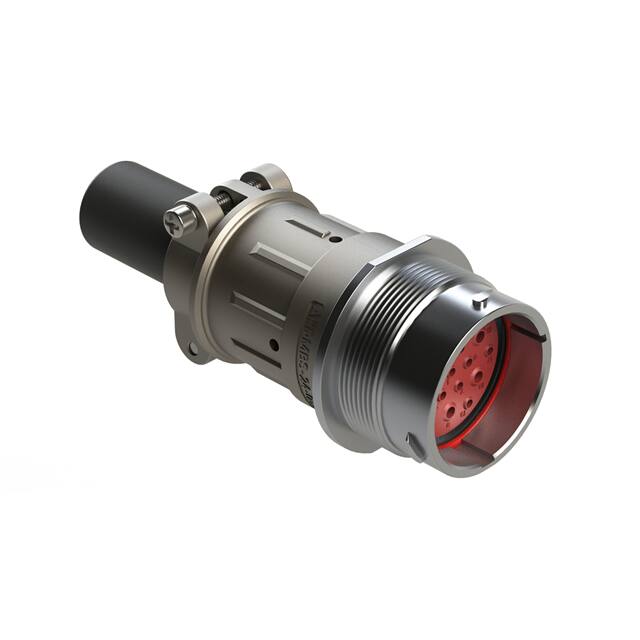

AHDM04-24-19PR-059
Or copy the link below:
- Mfr.Part #
- AHDM04-24-19PR-059
- Manufacturer
- Amphenol Sine Systems
- Package / Case
- Datasheet
- Download
- Description
- CONN RCP HSG M 19P INLINE PNL MT
- Stock
- 50
- In Stock ：
- 50
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Sine Systems
- Product Category :
- Circular Connector Housings
- Mounting Style :
- Free Hanging
- Mounting Type :
- Free Hanging (In-Line); Panel Mount
- Voltage Rating :
- 250 V
- Note :
- Contacts Not Included; Jam Nut Not Included
- Includes :
- 2 pcs - 1 Connector, 1 Backshell
- Contact Shape :
- Circular
- Shell Style :
- Receptacle
- Mating Style :
- Bayonet
- Contact Type :
- Crimp
- Product Status :
- Active
- Orientation :
- Keyed
- Shell Size :
- 24
- Number of Positions :
- 19
- Accessory Type :
- -
- Termination Style :
- Crimp
- Mating Cycles :
- 100 Cycles
- Product :
- Connectors
- Contact Gender :
- Pin (Male)
- Tradename :
- DuraMate
- Manufacturer :
- Amphenol
- Shell Size - Insert :
- 24-19
- Insert Material :
- Thermoplastic
- Fastening Type :
- Bayonet Lock
- Current Rating :
- 25 A
- Mounting Feature :
- Bulkhead - Front Side Nut
- Mounting Angle :
- Straight
- Ingress Protection :
- IP67/IP69K - Dust Tight, Water Resistant, Waterproof
- Material Flammability Rating :
- -
- Product Category :
- Standard Circular Connector
- Features :
- Backshell, Cable Clamp
- Operating Temperature :
- -55°C ~ 125°C
- Housing Color :
- Silver
- Brand :
- Amphenol SINE Systems
- Subcategory :
- Circular Connectors
- Package :
- Box
- Housing Material :
- Zinc
- Base Product Number :
- AHDM04
- Shell Finish :
- Nickel
- Shielding :
- Unshielded
- Shell Size, MIL :
- -
- Contact Size :
- 12 (6), 16 (13)
- Shell Plating :
- Nickel
- Product Type :
- Standard Circular Connector
- RoHS :
- Details
- Series :
- DuraMate? AHDM
- Shell Material :
- ZINC ALLOY
- Connector Type :
- Receptacle Housing
- IP Rating :
- IP67, IP69K
- Type :
- For Male Pins
- Datasheets
- AHDM04-24-19PR-059
Receptacle Housing Zinc Alloy Free Hanging (In-Line); Panel Mount 19 Positions Nickel Keyed Bayonet Lock
AHDM04-24-19PR-059 Overview
The packaging contains Receptacle Housing.There is a Free Hanging (In-Line); Panel Mount mounting type for the device.Product number DuraMate? AHDM belongs to the DuraMate? AHDM Series.This device operates at a temperature of -55°C ~ 125°C.
AHDM04-24-19PR-059 Features
DuraMate? AHDM series
AHDM04-24-19PR-059 Applications
There are a lot of Amphenol Sine Systems Corp
AHDM04-24-19PR-059 Circular Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
