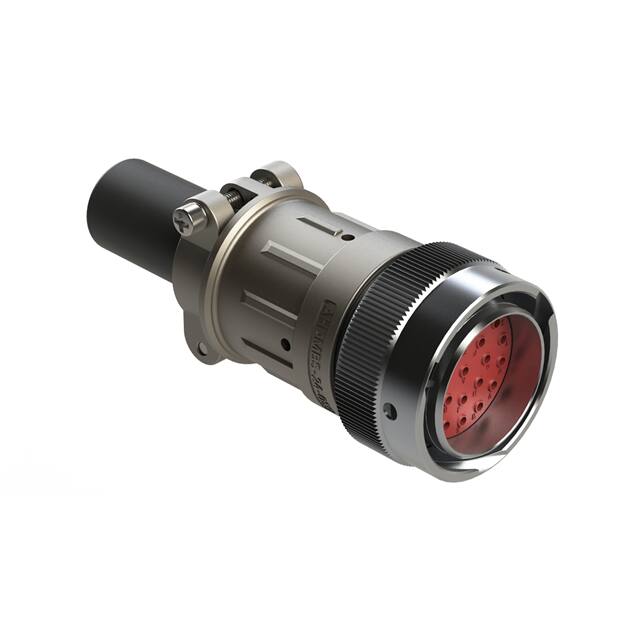

AHDM06-24-23PN-059
Or copy the link below:
- Mfr.Part #
- AHDM06-24-23PN-059
- Manufacturer
- Amphenol Sine Systems
- Package / Case
- Datasheet
- Download
- Description
- CONN PLG HSG MALE 23POS INLINE
- Stock
- 36
- In Stock ：
- 36
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Sine Systems
- Product Category :
- Circular Connector Housings
- Contact Type :
- Crimp
- Type :
- For Male Pins
- Product Status :
- Active
- Mounting Type :
- Free Hanging (In-Line)
- Current Rating :
- 13 A
- Material Flammability Rating :
- -
- Ingress Protection :
- IP67/IP69K - Dust Tight, Water Resistant, Waterproof
- Voltage Rating :
- 250 V
- Shell Size :
- 24
- Brand :
- Amphenol SINE Systems
- Shell Size, MIL :
- -
- Housing Color :
- Silver
- Includes :
- 2 pcs - 1 Connector, 1 Backshell
- Mating Style :
- Bayonet
- Product Category :
- Standard Circular Connector
- Shell Plating :
- Nickel
- Accessory Type :
- -
- Connector Type :
- Plug Housing
- Operating Temperature :
- -55°C ~ 125°C
- Note :
- Contacts Not Included
- Insert Material :
- Thermoplastic
- Mounting Angle :
- Straight
- Product :
- Connectors
- Contact Gender :
- Pin (Male)
- Shielding :
- Unshielded
- Shell Size - Insert :
- 24-23
- Mounting Style :
- Free Hanging
- Shell Material :
- ZINC ALLOY
- Mating Cycles :
- 100 Cycle
- Package :
- Box
- IP Rating :
- IP67, IP69K
- Fastening Type :
- Bayonet Lock
- Housing Gender :
- Male
- Housing Material :
- Zinc
- Series :
- DuraMate? AHDM
- Tradename :
- DuraMate
- Shell Style :
- PLUG
- RoHS :
- Details
- Base Product Number :
- AHDM06
- Number of Positions :
- 23
- Termination Style :
- Crimp
- Product Type :
- Standard Circular Connector
- Contact Shape :
- Circular
- Shell Finish :
- Nickel
- Subcategory :
- Circular Connectors
- Orientation :
- Keyed
- Features :
- Backshell, Cable Clamp, Coupling Nut
- Contact Size :
- 16
- Manufacturer :
- Amphenol
- Wire Gauge :
- 20 AWG - 14 AWG
- Mounting Feature :
- -
- Datasheets
- AHDM06-24-23PN-059
Plug Housing Zinc Alloy Free Hanging (In-Line) 23 Positions Nickel Keyed Bayonet Lock
AHDM06-24-23PN-059 Overview
The product comes in a package of Plug Housing.Free Hanging (In-Line) is the type of mounting for the device.The product is a member of the DuraMate? AHDM Series.It operates at an operating temperature of -55°C ~ 125°C.
AHDM06-24-23PN-059 Features
DuraMate? AHDM series
AHDM06-24-23PN-059 Applications
There are a lot of Amphenol Sine Systems Corp
AHDM06-24-23PN-059 Circular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
