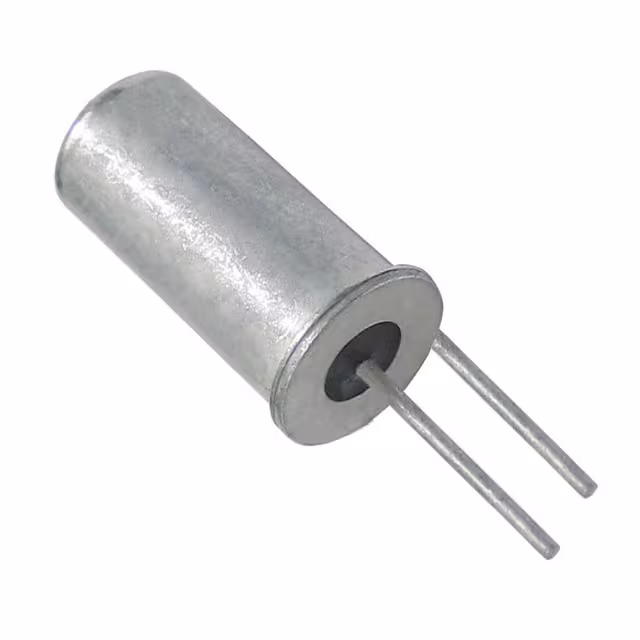

AHF12
Or copy the link below:
- Mfr.Part #
- AHF12
- Manufacturer
- Panasonic
- Package / Case
- PCB Mount
- Datasheet
- Download
- Description
- SENSOR TILT 25-60DEG 100MA TH
- Stock
- 16,580
- In Stock ：
- 16,580
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Panasonic
- Product Category :
- Motion Sensors - Tilt Switches
- Contact Current(DC)-Max :
- 1A
- Contact Voltage(DC)-Max :
- 12V
- Physical Dimension :
- 26.5mm x 22mm x 25.5mm
- Coil Power :
- 1400mW
- Coil Voltage(DC)-Max :
- 12V
- Pbfree Code :
- yes
- Packing Method :
- Box
- Sealing :
- FLUX FREE SEALED
- Body Length or Diameter :
- 26.5mm
- Release Time :
- 15 ms
- Lead Free :
- Lead Free
- Relay Action :
- Momentary
- Coil Release Voltage(DC) :
- 4.2V
- Current - Output :
- 100mA
- Termination Type :
- Solder
- HTS Code :
- 8536.41.00.05
- Relay Type :
- POWER/SIGNAL RELAY
- Coil Operate Voltage(DC) :
- 7V
- Mounting Type :
- Through Hole, Horizontal
- Contact (DC) Max Rating R Load :
- 1A@12VDC
- RoHS Status :
- RoHS Compliant
- Voltage - Supply :
- 5V~30V
- Package / Case :
- PCB Mount
- Operating Angle :
- 25° ~ 60°
- Packaging :
- Bulk
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Operating Temperature :
- -25°C~85°C
- Coil Resistance :
- 80Ohm
- Operate Time :
- 15 ms
- Coil Current(DC)-Max :
- 0.15A
- Electrical Life :
- 100000 Cycle(s)
- Throw Configuration :
- SPST
- ECCN Code :
- EAR99
- Body Height :
- 25.5mm
- Mount :
- Horizontal, Through Hole
- Coil/Input Supply Type :
- DC
- Contact/Output Supply Type :
- DC
- Body Breadth :
- 22 mm
- Published :
- 2002
- Datasheets
- AHF12
