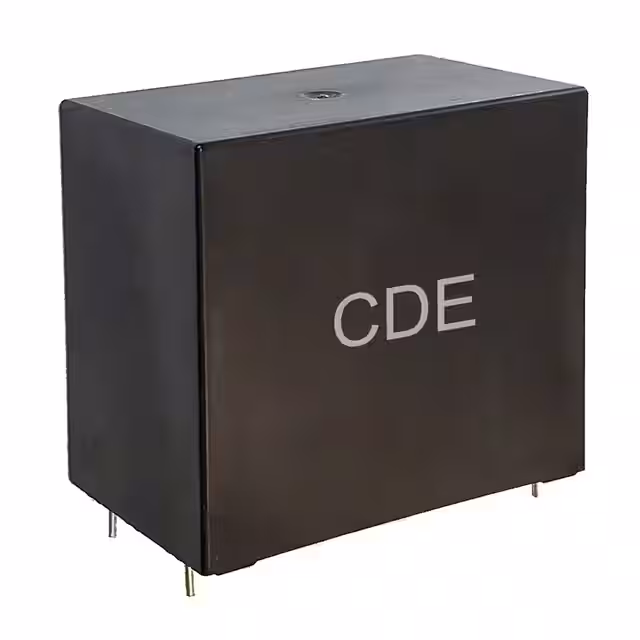

ALH206K161B064

Manufacturer :

Cornell Dubilier Electronics

Product Category :

Film Capacitors

Lead Spacing :

1.476" (37.50mm)

Maximum Operating Temperature :

+ 105 C

Manufacturer :

Cornell Dubilier

Voltage Rating - AC :

160V

Packaging :

Plastic UL94V-0

Package :

Bulk

Termination :

PC Pins

RoHS :

Y

Product Status :

Active

Applications :

Automotive; EMI, RFI Suppression

Lead Style :

Straight

Length :

42.5 mm

Ratings :

AEC-Q200

ESR (Equivalent Series Resistance) :

6.9 mOhms

Tolerance :

±10%

Width :

37 mm

Minimum Operating Temperature :

- 40 C

Termination Style :

Snap in

Voltage Rating - DC :

-

Mounting Type :

Through Hole

Package / Case :

Radial - 4 Leads

Capacitance :

20 µF

Type :

Power Film Capacitors

Series :

ALH

Height - Seated (Max) :

1.488" (37.80mm)

Number of Pins :

4 Pin

Features :

85C/85% Humidity

Height :

28 mm

Dielectric :

Polypropylene (PP)

Brand :

Cornell Dubilier - CDE

Subcategory :

Capacitors

Voltage :

160

Lead Diameter :

1.2 mm

Operating Temperature :

-40°C ~ 105°C

Size / Dimension :

1.673" L x 1.102" W (42.50mm x 28.00mm)

Product Category :

Film Capacitors

ESR :

6.9mOhm

Dielectric Material :

Polypropylene (PP)

Product :

General Film Capacitors

Product Type :

Film Capacitors
