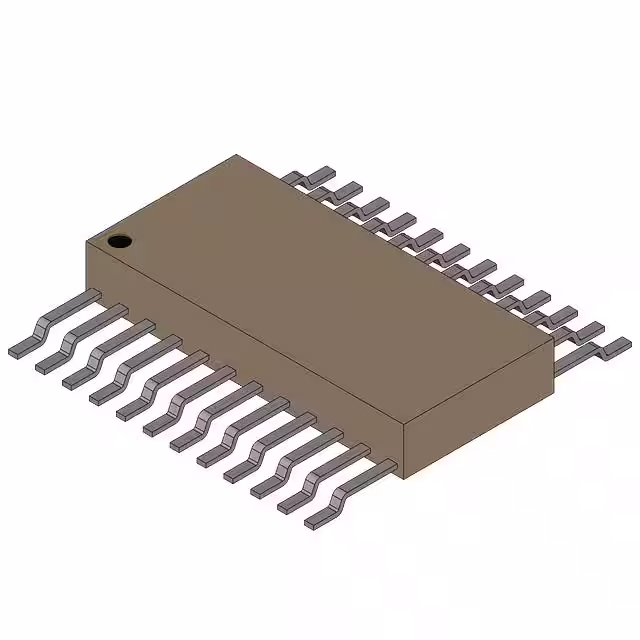

AM2504FMB

Manufacturer :

Advanced Micro Devices

Product Category :

Shift Registers

Supplier Device Package :

24-CFlatPack

Qualification Status :

Not Qualified

Voltage - Supply :

5.5V

HTS Code :

8542.39.00.01

Package Shape :

RECTANGULAR

Package / Case :

24-CFlatPack

Output Type :

-

Operating Temperature :

-55°C ~ 125°C

Number of Bits per Element :

12

Number of Bits :

12

Product Status :

Active

Output Polarity :

TRUE

Temperature Grade :

Military

Technology :

TTL

Terminal Pitch :

1.27 mm

Family :

TTL/H/L

Length :

15.24 mm

Additional Feature :

SUCCESSIVE APPROXIMATION REGISTER

Pbfree Code :

No

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

JESD-30 Code :

R-CDFP-F24

Pin Count :

24

Logic Type :

Register, Successive Approximation

Number of Elements :

1

Reach Compliance Code :

Unknown

Mounting Type :

Surface Mount

Logic IC Type :

SERIAL IN PARALLEL OUT

Series :

-

Number of Terminals :

24

Seated Height-Max :

2.286 mm

Package :

Bulk

Function :

Serial to Parallel

Terminal Form :

Flat

Surface Mount :

yes

JESD-609 Code :

e0

Manufacturer :

Rochester Electronics LLC

Count Direction :

Right

Propagation Delay (tpd) :

40 ns

Number of Functions :

1

Terminal Finish :

TIN LEAD

Trigger Type :

POSITIVE EDGE

Terminal Position :

Dual

fmax-Min :

15 MHz

Width :

9.4615 mm
