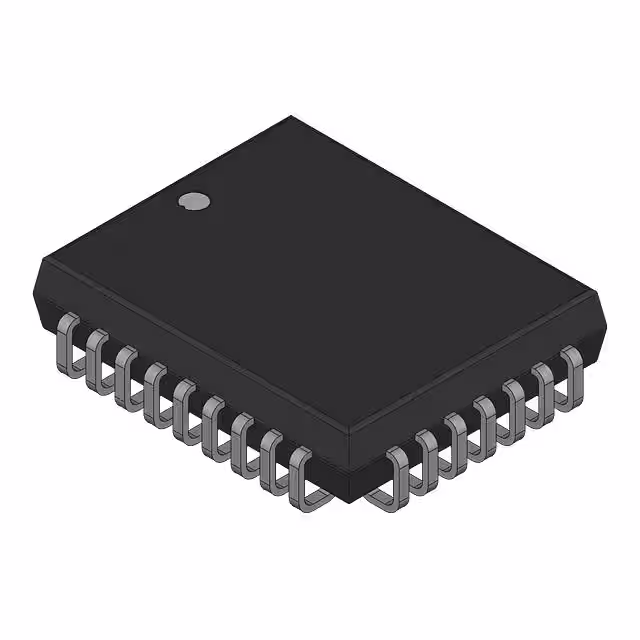

AM7201-50JC

Manufacturer :

Advanced Micro Devices

Product Category :

FIFOs Memory

Operating Temperature (Max) :

70°C

Output Enable :

No

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Surface Mount :

yes

Power Supplies :

5V

HTS Code :

8542.32.00.71

ECCN Code :

EAR99

Seated Height-Max :

3.556mm

Supply Voltage :

5V

Standby Current-Max :

0.005A

Output Characteristics :

3-STATE

Qualification Status :

Not Qualified

Pin Count :

32

Terminal Form :

J BEND

Memory IC Type :

OTHER FIFO

Access Time (Max) :

50 ns

Number of Functions :

1

Length :

13.97mm

Factory Lead Time :

[object Object]

Organization :

512X9

Parallel/Serial :

Parallel

Supply Voltage-Max (Vsup) :

5.5V

Pbfree Code :

No

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

RoHS Status :

Non-RoHS Compliant

Width :

11.43mm

JESD-609 Code :

e0

Supply Current-Max :

0.06mA

Memory Density :

4608 bit

Cycle Time :

65 ns

Number of Terminals :

32

Additional Feature :

RETRANSMIT

Temperature Grade :

COMMERCIAL

Supply Voltage-Min (Vsup) :

4.5V

Terminal Pitch :

1.27mm

Terminal Position :

QUAD

Operating Mode :

ASYNCHRONOUS

JESD-30 Code :

R-PQCC-J32

Terminal Finish :

Tin/Lead (Sn/Pb)

Clock Frequency :

15.38MHz

Memory Width :

9
