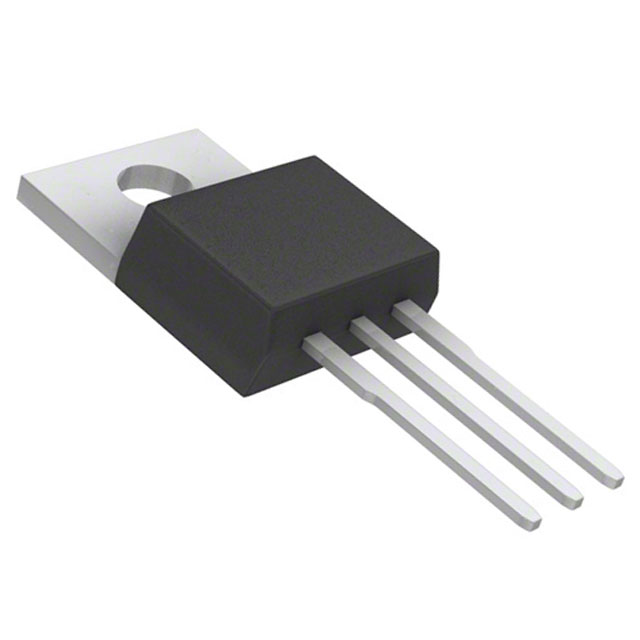

AOT11C60
Or copy the link below:
- Mfr.Part #
- AOT11C60
- Manufacturer
- Alpha and Omega Semiconductor, Inc.
- Package / Case
- TO-220-3
- Datasheet
- Download
- Description
- MOSFET N-CHANNEL 600V 11A TO220
- Stock
- 37,909
- In Stock ：
- 37,909
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Alpha and Omega Semiconductor, Inc.
- Product Category :
- Transistors - FETs, MOSFETs - Single
- Input Capacitance (Ciss) (Max) @ Vds :
- 2000pF @ 100V
- Rds On (Max) @ Id, Vgs :
- 440m Ω @ 5.5A, 10V
- Drain to Source Voltage (Vdss) :
- 600V
- Packaging :
- Tube
- Mounting Type :
- Through Hole
- Drive Voltage (Max Rds On,Min Rds On) :
- 10V
- Configuration :
- Single
- RoHS Status :
- RoHS Compliant
- Current - Continuous Drain (Id) @ 25°C :
- 11A Tc
- Published :
- 2015
- Gate Charge (Qg) (Max) @ Vgs :
- 42nC @ 10V
- Reach Compliance Code :
- Compliant
- Surface Mount :
- No
- Operating Temperature :
- -55°C~150°C TJ
- Vgs(th) (Max) @ Id :
- 5V @ 250μA
- Vgs (Max) :
- ±30V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- FET Type :
- N-Channel
- Drain Current-Max (Abs) (ID) :
- 11A
- Operating Mode :
- ENHANCEMENT MODE
- Package / Case :
- TO-220-3
- Power Dissipation-Max :
- 278W Tc
- Datasheets
- AOT11C60
N-Channel Tube 440m Ω @ 5.5A, 10V ±30V 2000pF @ 100V 42nC @ 10V 600V TO-220-3
AOT11C60 Overview
With either input grounded, the input capacitance parameter, CI, represents the capacitance between the input terminals of the op amp. This device has a maximum input capacitance of 2000pF @ 100V.11A is the drain current of this device, which is the maximum continuous current transistor can carry.Single MOSFETs transistor is necessary to have a drain to source voltage (Vdss) of 600V.Using drive voltage (10V) reduces this device's overall power consumption.
AOT11C60 Features
a 600V drain to source voltage (Vdss)
AOT11C60 Applications
There are a lot of Alpha & Omega Semiconductor Inc.
AOT11C60 applications of single MOSFETs transistors.
- Lighting
- Uninterruptible Power Supply
- AC-DC Power Supply
- Synchronous Rectification for ATX 1 Server I Telecom PSU
- Motor drives and Uninterruptible Power Supplies
- Micro Solar Inverter
- DC/DC converters
- Power Tools
- Motor Drives and Uninterruptible Power Supples
- Synchronous Rectification
