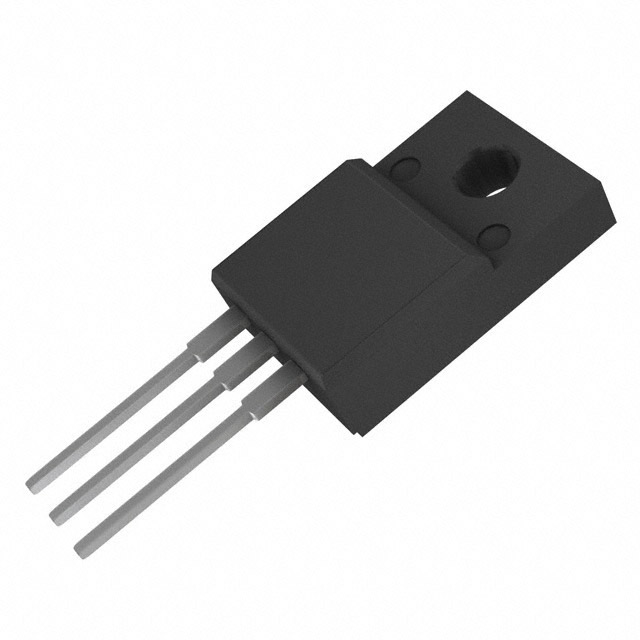

AOTF095A60L

Manufacturer :

Alpha and Omega Semiconductor, Inc.

Product Category :

Transistors - FETs, MOSFETs - Single

Vgs(th) (Max) @ Id :

3V @ 250µA

Mounting Type :

Through Hole

Vgs (Max) :

±20V

Supplier Device Package :

TO-220F

Operating Temperature :

-55°C ~ 150°C (TJ)

FET Feature :

-

Drive Voltage (Max Rds On, Min Rds On) :

10V

Drain to Source Voltage (Vdss) :

600 V

Base Product Number :

AOTF095

Power Dissipation (Max) :

41W (Tc)

FET Type :

N-Channel

Gate Charge (Qg) (Max) @ Vgs :

78 nC @ 10 V

Current - Continuous Drain (Id) @ 25°C :

38A (Tj)

Series :

aMOS5?

Product Status :

Active

Package :

Tube

Input Capacitance (Ciss) (Max) @ Vds :

4010 pF @ 100 V

Rds On (Max) @ Id, Vgs :

95mOhm @ 19A, 10V

Package / Case :

TO-220-3 Full Pack
