APS11060LLHALX-0PL

Manufacturer :

Allegro MicroSystems

Product Category :

Magnetic Sensors - Switches (Solid State)

Test Condition :

-40°C ~ 150°C

Current - Output (Max) :

40mA

Body Length or Diameter :

2.98mm

Body Height :

1mm

RoHS Status :

ROHS3 Compliant

Body Breadth :

1.91 mm

Surface Mount :

yes

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Current - Supply (Max) :

5mA

Packaging :

Tape and Reel (TR)

Output Type :

Open Drain

Voltage - Supply :

3.3V~24V

Polarization :

North Pole, South Pole

Mounting Type :

Surface Mount

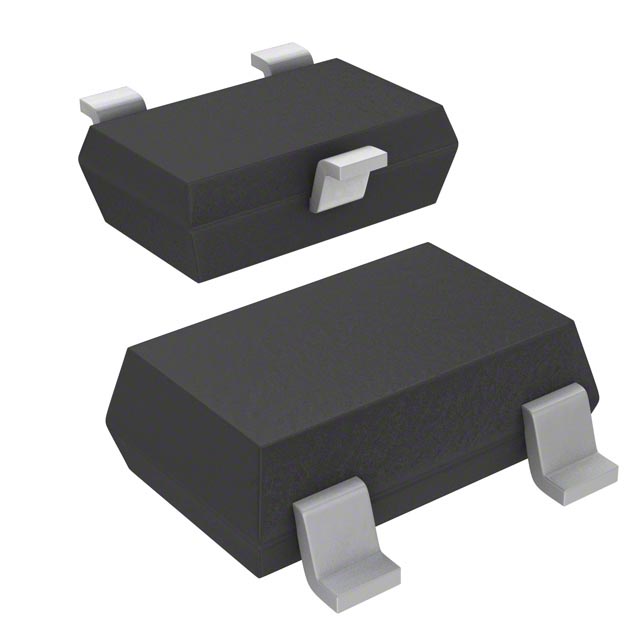

Package / Case :

SOT-23W

Terminal Finish :

Matte Tin (Sn)

Termination Type :

Solder

Factory Lead Time :

8 Weeks

JESD-609 Code :

e3

Sensing Range :

±7mT Trip, ±0.5mT Release

Operating Temperature :

-40°C~150°C TA

Function :

Omnipolar Switch

Additional Feature :

AEC-Q100; ISO 26262; SHORT-CIRCUIT PROTECTION; IT HAS MAGNETIC FIELD RANGE NORTH POLARITY FROM -0.5 TO -7 MILLITESLA

Hysteresis :

1.5 mT

Series :

Automotive, AEC-Q100
