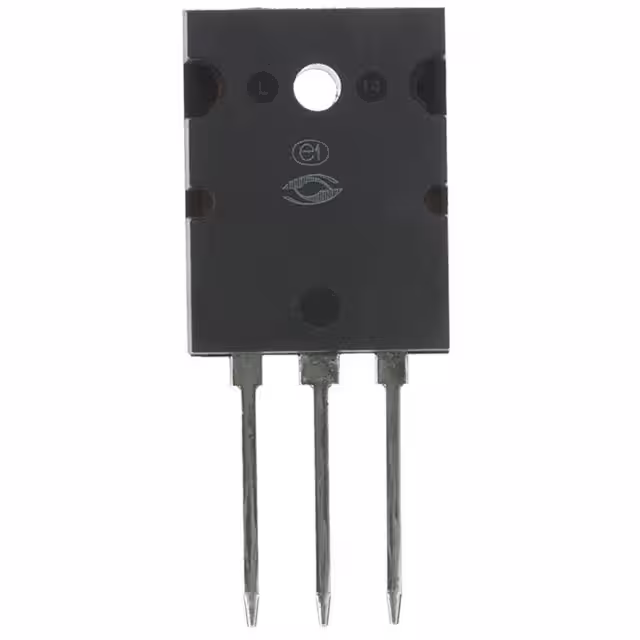

APT40M70LVRG

Manufacturer :

Microchip Technology

Product Category :

Transistors - FETs, MOSFETs - Single

Maximum Operating Temperature :

+ 150 C

Brand :

Microchip Technology / Atmel

Product Status :

Active

Mounting Type :

Through Hole

Configuration :

Single

Power Dissipation (Max) :

520W (Tc)

Supplier Device Package :

TO-264 (L)

Product Category :

MOSFET

Packaging :

Tube

Package / Case :

TO-264-3, TO-264AA

Channel Mode :

Enhancement

Drain to Source Voltage (Vdss) :

400 V

Rds On (Max) @ Id, Vgs :

70mOhm @ 28.5A, 10V

Input Capacitance (Ciss) (Max) @ Vds :

8890 pF @ 25 V

Operating Temperature :

-55°C ~ 150°C (TJ)

Gate Charge (Qg) (Max) @ Vgs :

495 nC @ 10 V

Package :

Tube

Vgs (Max) :

±30V

Product Type :

MOSFET

Number of Channels :

1 Channel

Drive Voltage (Max Rds On, Min Rds On) :

10V

Lead Free :

Lead Free

Rise Time :

16 ns

Vgs(th) (Max) @ Id :

4V @ 2.5mA

Mounting Style :

Through Hole

Transistor Type :

1 N-Channel

Minimum Operating Temperature :

- 55 C

Transistor Polarity :

N-Channel

Base Product Number :

APT40

Subcategory :

MOSFETs

Manufacturer :

Microchip

RoHS :

Compliant

FET Type :

N-Channel

FET Feature :

-

Series :

POWER MOS V?

Current - Continuous Drain (Id) @ 25°C :

57A (Tc)
