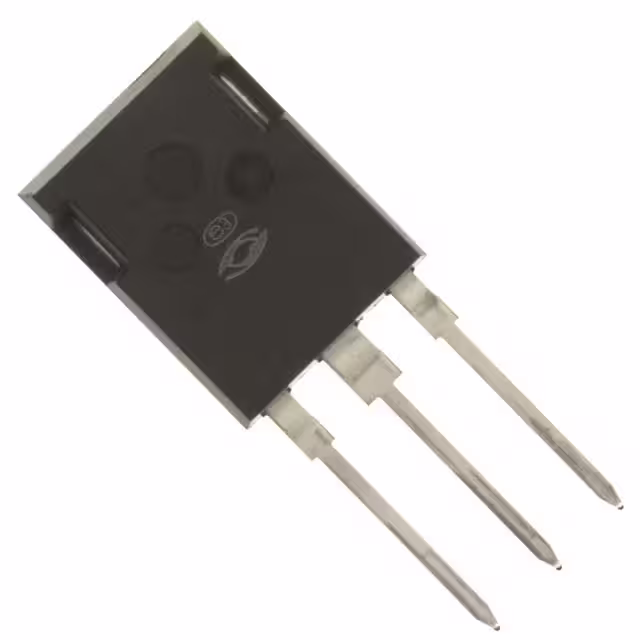

APT6010B2LLG

Manufacturer :

Microchip Technology

Product Category :

Transistors - FETs, MOSFETs - Single

Capacitance - Input :

6.71nF

Power Dissipation :

690W

Max Operating Temperature :

150°C

JESD-609 Code :

e1

Transistor Application :

SWITCHING

Turn On Delay Time :

12 ns

Current Rating :

54A

Terminal Finish :

TIN SILVER COPPER

Additional Feature :

FAST SWITCHING, HIGH VOLTAGE

Radiation Hardening :

No

Mount :

Through Hole

Power Dissipation-Max :

690W

Pin Count :

3

Terminal Position :

Single

Turn-Off Delay Time :

34 ns

Rds On Max :

100 mΩ

Gate to Source Voltage (Vgs) :

30V

Configuration :

SINGLE WITH BUILT-IN DIODE

Continuous Drain Current (ID) :

54A

FET Technology :

METAL-OXIDE SEMICONDUCTOR

Number of Pins :

3

Drain to Source Voltage (Vdss) :

600V

Voltage - Rated DC :

600V

RoHS Status :

RoHS Compliant

Pbfree Code :

yes

Operating Mode :

ENHANCEMENT MODE

Min Operating Temperature :

-55°C

Lead Free :

Lead Free

Package / Case :

TO-247-3

Polarity/Channel Type :

N-Channel

Number of Elements :

1

Rise Time :

19ns

Fall Time (Typ) :

9 ns

Number of Terminations :

3
